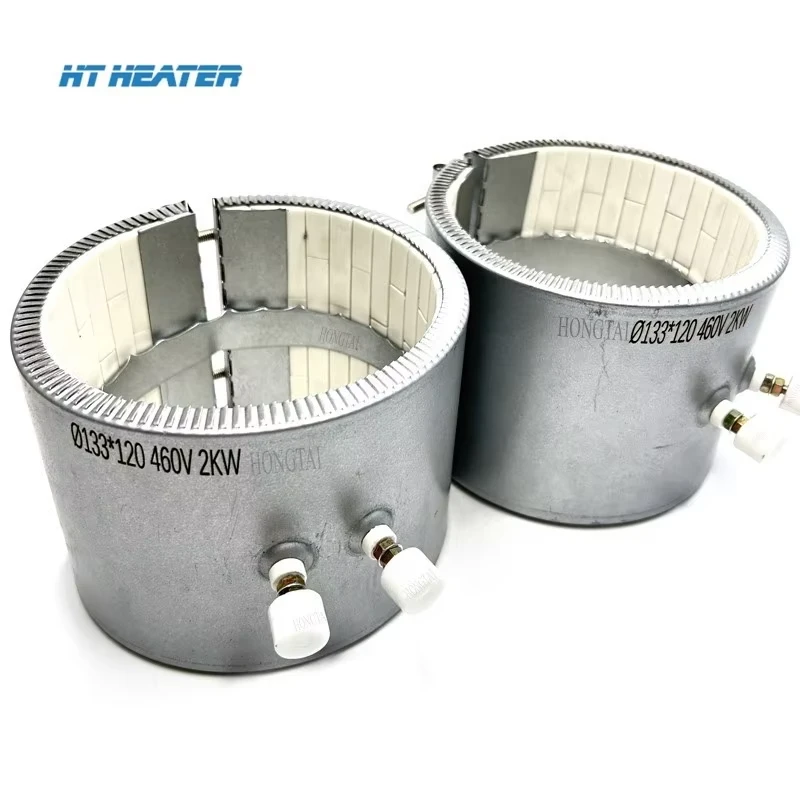

In high-temperature plastics extrusion and injection molding-particularly when processing engineering resins such as PEEK, PA66, PEI, and PPS-conventional heating bands frequently suffer from dielectric arc-over and extreme surface radiation losses. As an industry-leading manufacturer of advanced industrial heating solutions, Hongtai Alloy factory designs high-performance Hongtai ceramic band heaters engineered to withstand operating temperatures up to 500°C–700°C. By integrating high-purity steatite ceramic knuckle insulation and built-in ceramic fiber thermal blankets, Hongtai elements deliver superior thermal containment, cutting energy consumption by 20% to 35% while extending operational service life. This guide examines the thermal dynamics, watt density derating mechanics, and energy audit metrics for Hongtai ceramic band heaters.
1. Core Industry Pain Points in High-Temperature Resins
Processing engineering thermoplastics presents severe operational challenges for factory equipment managers and machinery builders:
Excessive Power Consumption & High Electricity Bills: Uninsulated barrel zones operating above 300°C radiate massive heat into the surrounding facility, forcing cooling systems to work harder and driving up utility expenses.
Frequent Burnout of Standard Heaters: Organic and mica dielectrics degrade rapidly under continuous high-watt-density loads at elevated temperatures, leading to premature wire burnout and unscheduled line downtime.
Ambient Thermal Dissipation & Operator Hazards: Unshielded barrel heaters raise workshop ambient temperatures, creating harsh working environments and presenting severe skin-contact burn hazards to operators.
2. Structural Physics & Insulation Engineering
Hongtai ceramic band heaters utilize a multi-layer composite thermal architecture designed for maximum dielectric strength and thermal efficiency.

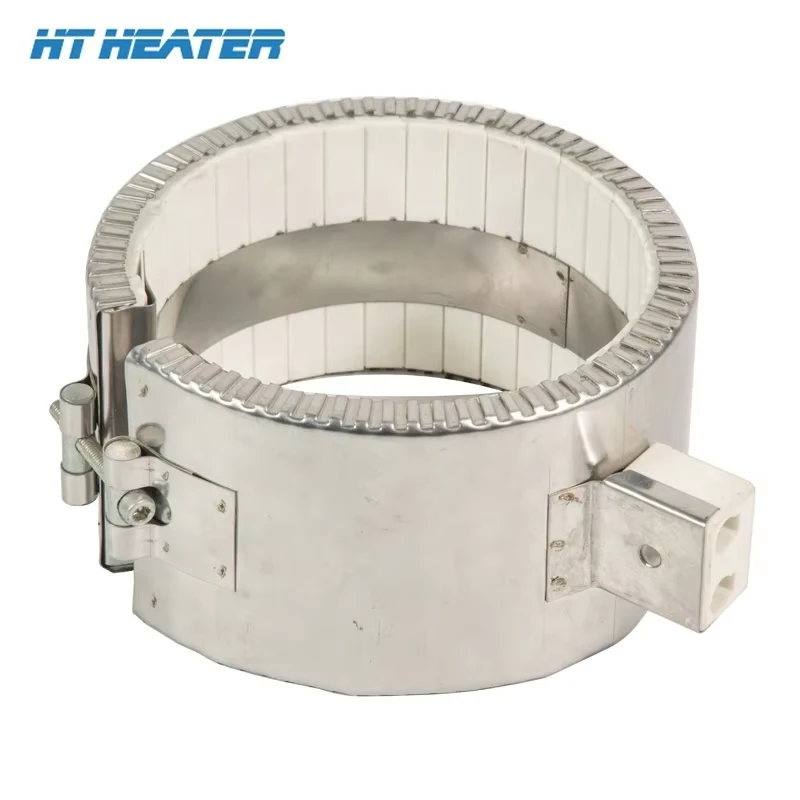

2.1 Interlocking Steatite Ceramic Knuckles
Unlike flat sheets, Hongtai elements employ high-purity, steatite ceramic bricks (knuckles) to encapsulate high-grade Ni80Cr20 resistance coils. Steatite provides exceptional dielectric breakdown resistance (over 30 kV/mm) and maintains physical integrity without cracking under high-temperature thermal shock.
2.2 Built-in Ceramic Fiber Thermal Blanket
Positioned between the steatite cores and the outer casing, a high-density ceramic fiber blanket creates a directional heat shield. It reflects thermal energy inward toward the barrel while reducing outer shell radiation into the workshop.
3. Energy Efficiency & ROI Performance Analysis
Upgrading to Hongtai ceramic band heaters directly reduces overall plant operating expenses:
| Performance Metric | Standard Mica Band Heater | Insulated Hongtai Ceramic Band Heater |
| Max Operating Temperature | Up to 300°C – 350°C | Up to 500°C – 700°C |
| Energy Savings Potential | Baseline (0%) | 20% to 35% Electricity Reduction |
| Outer Sheath Surface Temp | Extremely High (~Barrel Temp) | Significantly Reduced Outer Shell |
| Dielectric Lifespan at >300°C | Low (Frequent Failure) | Extended Heavy-Duty Lifespan |
| Ambient Workshop Heat Impact | Heavy Heat Radiation | Minimal Heat Dissipation |
4. Watt Density Limits & Surface Power Calculations
To prevent internal coil overheating, total power density must be matched to barrel operating temperatures.
Surface Watt Density (W) is calculated using:
W =P/(π• D•H)
Where P is total element power in Watts (W).
D is internal band diameter in centimeters (cm).
H is band width in centimeters (cm).
Recommended Watt Density Thresholds
Standard Processing (< 300°C): Safe watt density limits range between 6.0 – 8.0 W/cm² (38.7 – 51.6 W/in²).
High-Temperature Processing (300°C – 450°C): Recommended watt density is 4.5 – 6.0 W/cm² (29.0 – 38.7 W/in²).
Extreme Thermal Duty (450°C – 700°C): Derate watt density to 3.0 – 4.0 W/cm² (19.3 – 25.8 W/in²).
5. Custom Hongtai Product Line & Engineering Options
When designing comprehensive plant heating configurations-including auxiliary liquid conditioning systems as covered in Flange Immersion Heaters: Thermodynamics & Sheath Metallurgy-Hongtai Alloy factory supplies custom-fit Hongtai ceramic band heaters tailored to exact machine geometry:
Terminal Enclosure Styles: Heavy-duty terminal boxes, 90° metal elbow conduit armor, or high-temperature ceramic post terminals for space-constrained machinery.
Thermocouple Integration: Precision CNC-cut slots and holes for J-type or K-type thermocouple probe wells to ensure exact closed-loop PID control. For embedded sensors, review Cartridge Heaters with Built-In Thermocouple: Engineering & Selection Guide.
Clamping Mechanics: Heavy-duty barrel nut clamping and spring-loaded quick-release options to compensate for thermal expansion during continuous thermal cycling.
