To combat barrel overheating and melt degradation caused by screw friction in high-output extruders, Hongtai Alloy factory provides high-precision Hongtai cast-in aluminum heaters. Unlike standard surface bands detailed in Mica Band Heaters: Insulation Materials, Clamping & Extrusion Guide, these heavy-duty elements feature internal stainless steel cooling tubes within a high-thermal-mass aluminum body-delivering dual-directional "heating + liquid cooling" to maintain strict PID temperature limits under intense shear loads.
1. Extrusion Thermal Instability & Screw Shear Overheating
Maintaining a narrow melt temperature window is critical in high-performance blown film, pipe, and sheet extrusion. Uncontrolled thermal fluctuations trigger distinct production defects:
Frictional Overheating & Resin Degradation: Rapid screw rotation generates localized shear energy that rapidly spikes barrel temperatures beyond processing limits, causing polymer yellowing, gels, and degraded physical properties.
Temperature Swings & Gauge Variance: Standard uncooled heaters cannot dissipate excess heat quickly. Thermal lag creates wide temperature swings along processing zones, resulting in inconsistent melt viscosity and film thickness variations.

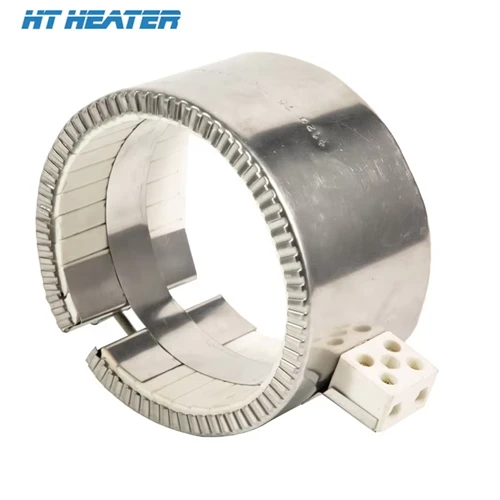

Mechanical Degradation & Short Service Life: Thin-profile heaters installed on heavy extruder barrels frequently fail under mechanical vibration, thermal shock, and physical impact. For specialized high-temperature applications exceeding aluminum's melting point, engineers should evaluate Ceramic Band Heaters for High-Temp Extrusion: Engineering Guide.
2. Cast-in Metallurgy & Dual-Directional Thermal Control

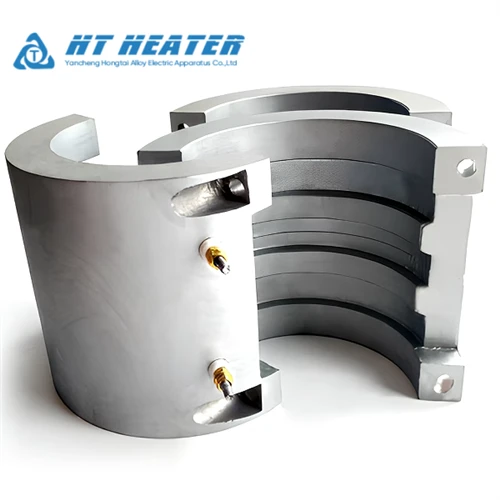

Hongtai cast-in aluminum heaters utilize a precision foundry process that encapsulates heavy-duty tubular heating elements and seamless cooling tubes inside a dense, void-free aluminum matrix.
2.1 Dense Thermal Mass & Uniformity
The high thermal conductivity of cast aluminum (≈160W/m•K) acts as a thermal buffer that eliminates localized hot spots. The dense metal mass absorbs energy spikes and evenly distributes heat across 360° of the barrel surface.
2.2 Dual-Directional "Heating + Cooling" Integration
Cast directly alongside the heating element, seamless AISI 304/316 stainless steel cooling loops allow water or thermal oil to circulate through the block. When PID controllers detect shear heat overshoots, liquid coolant flushes through the internal channels, instantly extracting excess heat without shocking the heater casing.
3. Operational Performance & Comparison Matrix
Upgrading to Hongtai cast-in aluminum heaters ensures precise barrel thermal stability and protects extrusion tooling:
| Performance Metric | Standard Sheet Metal Band Heater | Hongtai Liquid-Cooled Cast-in Aluminum Heater |
| Active Cooling Capability | None (Passive Ambient Cooling Only) | Active Internal Liquid Cooling Channels |
| Thermal Mass & Stability | Low (Susceptible to Shear Overshoot) | High Thermal Inertia & Uniform Heat Spread |
| Max Operating Temperature | Up to 300°C – 350°C | Up to 400°C Continuous Service |
| Physical Durability | Prone to Mechanical Deformation | Heavy-Duty Shock-Resistant Solid Casting |
| Service Lifespan | Moderate (Regular Replacements) | Extended Heavy-Duty OEM Service Life |
4. Power Density Sizing & Thermal Calculations
Determining proper surface watt density ensures long heating element life and prevents thermal stress within the aluminum casting. For tight tooling clearances requiring specialized cylindrical cartridges, review Precision Swaged Cartridge Heaters: H7 Hole Fit & Heat Transfer Guide.
Surface Watt Density (W) is calculated using:
W =P/(π•D•H)
Where P is total element power in Watts (W).
D is internal heater diameter in centimeters (cm).
H is heater width in centimeters (cm).
4.1 Recommended Watt Density & Fitting Guidelines
Standard Aluminum Casting (< 350°C): Recommended surface watt density is 3.0 – 4.5 W/cm² (19.3 – 29.0 W/in²).
Extreme Mechanical Duty: Ensure the internal diameter of the cast band is CNC-bored to match barrel dimensions precisely. Tight bolt clamping eliminates air gaps and maximizes heat transfer.
5. System Integration & Custom Hongtai OEM Capabilities
When engineering complex industrial thermal systems-including auxiliary liquid tanks detailed in Screw Plug Immersion Heaters: Thread Sealing & Viscosity Sizing or high-flow plant circulation units covered in Flange Immersion Heaters: Thermodynamics & Sheath Metallurgy-Hongtai Alloy factory manufactures custom Hongtai cast-in aluminum heaters to exact specifications:
Cooling Tube Fitting Options: Threaded NPT/BSP compression fittings, extended plain tube ends, or quick-disconnect fluid couplings.
Terminal Enclosure Styles: NEMA 4 moisture-resistant terminal boxes, heavy-duty ceramic posts, or flexible armored lead wire exits.
Custom Machine Geometries: Single-hinged bands, two-piece split rings, flat platen shapes, or complex multi-zone air-cooling shroud assemblies.
Ready to eliminate screw shear heat spikes and optimize your extrusion line stability? Hongtai Alloy factory delivers custom Hongtai cast-in aluminum heaters engineered to international OEM standards.
