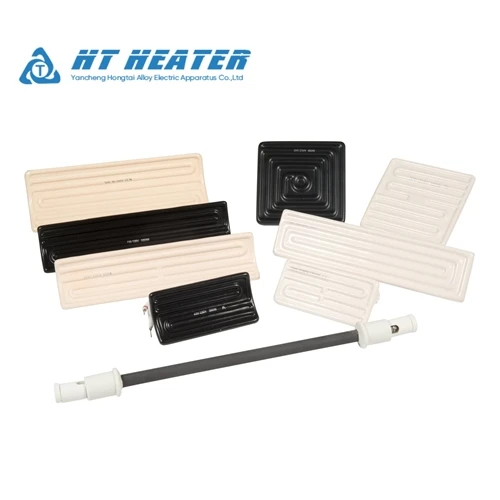

1. What Is Infrared Heater Power Calculation?
In industrial applications, an infrared heater power calculation is not about sizing a space heater for a room. It is the precise thermodynamic process of determining the exact electrical power (kW) and radiant heat flux required to elevate a specific industrial substrate-such as a polymer sheet, moving textile, or metal part-to its target processing temperature within a strict cycle time.
Proper calculation prevents material scorching, eliminates cold spots in thermoforming, and ensures the specified infrared array, such as those engineered by Hongtai heater factory, operates at peak energy efficiency.
2. Industrial Infrared Heating Power Formula
The foundation of heating any material requires calculating the sensible heat-the absolute minimum thermal energy needed to achieve the temperature rise. For a deeper dive into foundational thermodynamics and heat transfer mechanisms, consult our Industrial Infrared Heating: How It Works & Engineering Guide.
Step A: Theoretical Material Power Requirement
Pmaterial= (m •Cp •ΔT)/(t •1000)
Where:
Pmaterial = Theoretical power required by the material (kW)
m = Mass of the material to be heated (kg)
Cp = Specific heat capacity of the material (J/kg·K)
ΔT = Temperature rise required (Tfinal - Tinitial in °C)
t = Time allowed for heating (seconds)
Step B: Factoring in Evaporation (Latent Heat)
If your process involves drying (e.g., evaporating water from a coating), you must add the latent heat of vaporization:
Platent =(mwater• hwe)/(t •1000)
(Where hwe is the latent heat of vaporization for water, approx. 2260 kJ/kg).
Step C: Installed Electrical Power
The calculated sensible and latent heat represents the theoretical energy required. The actual installed electrical power must be higher to account for system losses:
Pinstalled = (Pmaterial+ Platent)/ηsystem
Engineering Note on Efficiency (ηsystem):
ηsystem should be based on application data, testing, or validated equipment experience-not treated as a universal constant. It must account for emitter efficiency, convection losses, reflection losses, view factor, and the specific absorptivity of the target material.
3. Heat-Up Power vs. Steady-State Maintenance Power
A critical oversight in infrared system design is failing to distinguish between the power required to start a process and the power required to maintain it.
Prequired = max(Pheat-up, Pmaintenance)
Heat-Up Power (Pheat-up): The aggressive energy output required to bring a cold oven chassis, conveyors, molds, and the initial batch of material up to operating temperature.
Maintenance Power (Pmaintenance): The continuous power required to heat the incoming material throughput while offsetting steady-state losses (e.g., oven wall heat transfer, cold air ingress, exhaust ventilation).
Industrial heating arrays are typically sized for the heat-up requirement and rely on PID controllers with solid-state relays (SSRs) to throttle the power down to the maintenance level during continuous operation.
4. Industrial Infrared Heater Power Calculation Example
To bridge the gap between theory and application, consider a standard thermoforming process utilizing Blackbody Ceramic Infrared Heater Tubes. The tubular form factor (as opposed to standard flat bricks) is specifically advantageous for creating continuous, linear radiant heat profiles across moving webs or wide sheets.
Application: PET Sheet Thermoforming(Linear Array)
Material: Ceramic
Material mass (m): 5 kg
Initial temperature (Tinitial): 25°C
Target temperature (Tfinal): 160°C
Heating time (t): 60 s
Specific heat capacity (Cp): 1,200 J/kg·K
Estimated system efficiency (ηsystem): 60% (0.60)
Calculation:
Pmaterial=[5 × 1200 ×(160 - 25)]/(60× 1000) = 13.5 kW
Pinstalled = 13.5/0.60 = 22.5 kW
If the heating array uses standard 1,000 W (1.0 kW) infrared ceramic heaters, the theoretical heater quantity is:
N = 22.5/1.0 = 22.5
Practical Selection: 23 × 1000 W blackbody ceramic tubes = 23 kW.
Note: The final array design will require additional control margins, edge-loss compensation, and optimal tube spacing (pitch) adjustments to ensure uniform thermal distribution along the length of the tubes, which may increase the total installed heater count.
5. How to Calculate Infrared Heater Watt Density
Once total power is established, it must be distributed correctly. This is achieved by specifying the Electrical Watt Density, which determines the operating temperature and corresponding peak wavelength of the emitter. To understand how physical geometry affects radiant dispersion at different watt densities, refer to our Ceramic Infrared Heater Guide: Types, Wattage & Temperature.
Wd = P/A
Example: 245 × 60 mm Ceramic IR Heater
A = 24.5cm× 6.0 cm = 147cm2
For a 250 W Heater:
Wd = 250/147 = 1.70 W/cm2
For a 1000 W Heater:
Wd= 1000/147 = 6.80 W/cm2
The exact same physical heater size can produce vastly different watt densities depending on the internal electrical power rating.
6. Electrical Watt Density vs. Radiant Heat Flux
It is crucial to separate the heater's specification from the process reality:
Heater Watt Density (Wd): Describes the electrical power loading of the emitter itself (W/cm²).
Radiant Heat Flux: The actual thermal energy absorbed by the product per unit area.
Radiant heat flux does not equal heater watt density. The flux reaching the product is heavily modified by the heating distance, the view factor (geometry of the array), the efficiency of the reflectors, and the emissivity of the material being heated.
7. How Emitter Type Affects Watt Density
Different infrared technologies are engineered to safely operate at specific power densities. To understand how these specific operating temperatures and watt densities shift the electromagnetic output, consult our Short-Wave vs Medium-Wave vs Long-Wave Infrared Heaters: Engineering Selection Guide.
| Emitter Technology | Typical Electrical Watt Density | Typical Surface Temperature | Engineering Note |
| Ceramic IR Heater | Application-dependent (often 2–7 W/cm²) | 300°C – 750°C | Highly uniform heating, ideal for thermoforming and drying. |
| Medium-Wave Quartz | Application-dependent | Depends on emitter design | Fast response time, excellent for web heating. |
| Short-Wave Halogen | Application-dependent | High-temperature filament | High-speed surface heating, deep penetration. |
The values shown are representative engineering ranges, not universal design limits. Always use the manufacturer's data sheet for the selected emitter.
8. Material Absorption, Wavelength & Heating Efficiency
Required electrical power depends not only on material mass and temperature rise, but also on how efficiently the material absorbs infrared radiation. A higher heater watt density does not automatically mean faster or better heating.
Black / Opaque Plastics: Generally exhibit strong, broad-spectrum absorption. They heat up rapidly and can handle moderate to high watt densities.
Clear PET & Polycarbonate: Wavelength matching is critical. Clear plastics transmit much of the short-wave energy directly through them; they require medium to long-wave radiation (lower watt densities) to ensure energy is absorbed by the polymer bonds.
Water-Based Coatings: Moisture evaporation completely dominates the heat load. Emitters tuned to the peak absorption wavelength of water (approx. 2.7 to 3.0 µm) yield the highest efficiency.
Metals: Highly reflective surfaces have low emissivity and poor absorption. Heating polished metals requires specialized short-wave equipment or contact-based conduction solutions (such as those detailed in our High-Density Cartridge Heaters: Precision Mold Engineering Guide.
9. Infrared Heater Array Layout & Edge-Loss Compensation
When building a platen or oven array, heat loss is never uniform across the substrate.
In a continuous web or flat-sheet thermoforming application, the edges of the material lose heat to the ambient air much faster than the center.
Center Zones: Should be populated with standard watt density heaters.
Outer Perimeter Zones: Should be specified with heaters that deliver a 15% to 25% higher power output to compensate for edge cooling, ensuring a uniform temperature profile across the entire sheet. Hongtai heater factory frequently supplies modular, standard-sized emitters with varied internal coil resistances to simplify this zoning process.
10. How to Select the Correct Infrared Heater Power (Workflow)
Follow this fundamental sizing sequence when engineering an industrial infrared system:
Define Material Throughput: Establish the processing rate in kg/h, kg/min, or units per cycle.
Define Temperature Rise: Calculate Δ T = Tfinal - Tinitial.
Calculate Sensible Heat: Apply the formula P = (m •Cp •ΔT)/(t •1000).
Add Latent Heat: Incorporate Platent if the process involves evaporating solvents or water.
Account for System Losses: Divide by ηsystem to find the total installed electrical power.
Select Heater Watt Density: Choose the electrical loading based on emitter type, target surface temperature, array distance, and material absorption curves.
Validate Through Testing: Industrial infrared heating relies on complex variables. Always validate theoretical calculations with physical bench testing or pilot runs.
11. Frequently Asked Questions (FAQ)
Q1: How do I calculate the required power for an infrared heater?
Calculate the sensible heat needed to raise the material's mass to the target temperature within the cycle time, add latent heat if evaporating liquids, and divide by the estimated system efficiency factor.
Q2: What is the difference between heater wattage and watt density?
Wattage (W or kW) is the total electrical power consumed by the element. Watt density (W/cm² or W/in²) is that total power divided by the active emissive surface area. It dictates how concentrated the energy is and determines the heater's operating temperature.
Q3: How do I calculate infrared heater watt density?
Divide the total wattage of the specific heater by its active surface area. For example, a 500W heater with an active area of 100 cm² has a watt density of 5 W/cm².
Q4: Does higher watt density mean faster heating?
Not necessarily. Higher watt density increases the emitter temperature and shifts the radiation to shorter wavelengths. If the target material (like clear plastic) does not absorb short-wave energy efficiently, the energy will pass through or reflect, resulting in slower heating and wasted power.
Q5: How much infrared heater power do I need for thermoforming?
It depends entirely on the plastic type, sheet thickness, cycle time, and platen size. A typical industrial thermoforming machine may utilize installed power densities across the heating platen ranging from 15 kW/m² to over 40 kW/m², properly zoned for edge compensation.
Q6: How do I calculate infrared heater power for drying?
In addition to the sensible heat required to warm the substrate and the liquid, you must calculate the latent heat of vaporization (the energy required to phase-change the liquid into a gas). For water, this requires approximately 2260 kJ per kilogram evaporated.
Q7: How does reflector efficiency affect infrared heater power?
A reflector can redirect a portion of the rearward radiation toward the product, but the actual improvement depends heavily on reflector geometry, surface condition (oxidation/cleanliness), and the view factor. Do not assume a fixed 50% recovery rate unless it has been validated for the specific heater and reflector assembly.
Q8: How do I select ceramic vs. quartz infrared heaters?
Select ceramic infrared heaters for processes requiring uniform, long-wave radiation (thermoforming, general drying) and durability. Select quartz or halogen heaters for processes requiring fast thermal response times (rapid on/off cycles) or deep-penetrating short/medium-wave energy.
