Solid ceramic emitters are workhorses of industrial infrared heating, delivering clean, uniform long-wave thermal radiation across continuous thermoforming, web drying, and industrial curing operations. Unlike glass tube emitters that rely on delicate filaments, ceramic elements embed high-resistance alloy wires into solid refractory ceramic bodies, creating rugged heating surfaces capable of withstand vibration, chemical exposure, and thermal shock.
As a direct manufacturer, Hongtai heater factory engineers high-density Hongtai ceramic heaters tailored for maximum directional radiant transfer. This guide breaks down geometric types, electrical power parameters, thermal wavelength mapping, and real-world industrial application criteria.
1. Types of Ceramic Infrared Heaters (Flat, Curved & Hollow)
The physical geometry and internal body construction of a ceramic emitter dictate its radiant dispersion pattern, thermal mass, and dynamic heating response.
1.1 Flat Ceramic Heaters (FSF Series)
Physical Geometry: Flat-faced ceramic tile (standard dimensions: 245 x 60 mm FTE, 122 x 60 mm HFE).
Radiant Pattern: Emits a parallel, uniform curtain of infrared energy perpendicular to the heating surface.
Engineering Advantage: Ideal for close-proximity heating where the distance between the emitter array and the target surface is short (< 100 mm). Provides seamless, edge-to-edge thermal coverage across continuous moving webs or flat sheet materials.

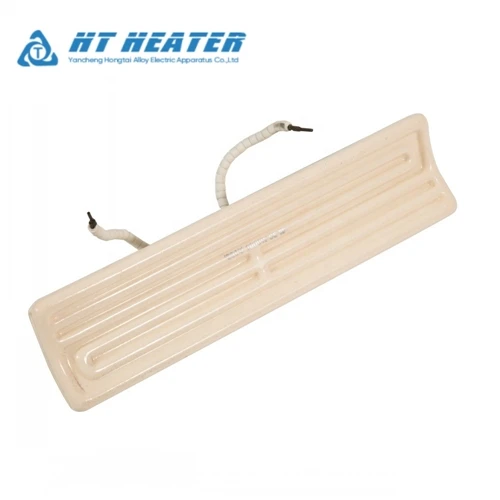

1.2 Curved / Trough Ceramic Heaters (FSR/1 Series)
Physical Geometry: Concave trough design with a curved emissive profile.
Radiant Pattern: Concentrates radiant flux into a wide forward arc (typically 60° to 90° emission pattern).
Engineering Advantage: The parabolic curve allows emitted radiation from adjacent heaters in an array to overlap evenly. This allows designers to space heaters further apart in reflector banks without causing cold lines on the target surface.
1.3 Hollow Ceramic Heaters (HTS Series)
Physical Geometry: Engineered with an internal hollow air chamber cast behind the refractory ceramic plate and filled with high-purity thermal insulation.
Thermal Mass Advantage: By isolating the rear face, heat is prevented from soaking into the back structure.
Performance Metrics: Achieves up to 40% faster heat-up and cool-down cycles compared to solid-cast heaters, dramatically reducing line startup time and preventing material scorching during emergency line stops.
2. Determining the Right Wattage and Power Density
Selecting the correct wattage is not merely about maximum power; it is about calculating the exact watt density (W/cm2 or W/in2) required across the active heating surface.
2.1 The Heat Conversion Chain
The thermal energy transfer follows a strict physical progression:
Ceramic Plate: Internal electrical energy converts to thermal energy within the embedded NiCr resistance coil housed in the ceramic plate.
Heating Surface: Conduction drives heat evenly through the refractory body to the outer glazed heating surface.
Watt Density: The concentration of power per unit area (watt density) dictates the equilibrium surface temperature and total energy flux.
Radiation: The hot surface emits long-wave electromagnetic radiation.
Target Surface: The target material (plastic, paint, paper) absorbs the radiant photons, raising its temperature.
2.2 Calculating Surface Watt Density
The surface watt density (WD) is calculated using total wattage (P) and active surface area (A):
WD = P/(L ×W)
Where L is length and W is width of the active emissive face.
| Element Type | Standard Dimensions | Typical Wattage Range | Watt Density Range |
| Full Element (FTE / CTE) | 245 mm x 60 mm | 150W – 1000W | 1.02 W/cm² – 6.80 W/cm² |
| Half Element (HFE / HTE) | 122 mm x 60 mm | 125W – 500W | 1.70 W/cm² – 6.83 W/cm² |
| Quarter Element (QTE) | 60 mm x 60 mm | 75W – 250W | 2.08 W/cm² – 6.94 W/cm² |
| Square Element (SEB) | 122 mm x 122 mm | 250W – 1000W | 1.68 W/cm² – 6.71 W/cm² |
Wiring & Control Tip: High watt-density arrays generate intense ambient temperatures behind the reflector panel. Ensure your system utilizes Hongtai ceramic heaters specified with back-exiting thermocouples (Type K or J) so sensor leads run straight out the back away from radiant heat zones.
3. Operating Temperature Curves vs. Infrared Wavelengths
According to Wien's Displacement Law (λmax= b/T), the peak emission wavelength (λmax) of an infrared emitter is inversely proportional to its absolute operating temperature (T).
3.1 Temperature to Wavelength Mapping
As the watt density of the ceramic plate increases, the surface temperature rises, shifting the peak spectral output toward shorter wavelengths:
Low Watt Density (300°C – 400°C): Peak emission at 5.0 – 8.0 µm (Far/Long-wave IR). Gentle, non-penetrating surface heat.
Medium Watt Density (450°C – 600°C): Peak emission at 3.5 – 5.0 µm (Medium-wave IR). Ideal balance for thick polymers and water evaporation.
High Watt Density (650°C – 750°C): Peak emission at 2.8 – 3.5 µm (Fast Medium-wave IR). Maximum radiant intensity for fast-moving automated lines.
3.2 Spectral Resonance Matching
For maximum efficiency, match the heater's peak wavelength to the molecular absorption spectrum of the target surface:
Water / Moisture: Absorbs strongly at 2.7 µm and 6.0 µm.
Polymers (ABS, PVC, PS): Exhibit high hydrocarbon absorption spikes between 3.2 µm and 3.5 µm.
Powder Coatings: Optimal absorption occurs between 2.5 µm and 4.0 µm.
4. Industrial Applications: From Thermoforming to Drying
Matching the heater geometry, watt density, and temperature range to specific industrial machinery ensures high throughput and energy savings.
| Industry Process | Target Surface Material | Recommended Emitter Type | Operating Temp / Watt Density | Core Technical Rationale |
| Heavy-Gauge Sheet Thermoforming | ABS, HIPS, PC (3mm–10mm thick) | Trough Ceramic (CTE / HTE) | 550°C – 700°C (4.5 – 6.0 W/cm²) |
Overlapping parabolic arcs provide deep, uniform plasticization without burning outer skin. |
| Thin-Film Packaging & Vacuum Forming | PVC, PET, PLA (< 1mm thick) | Hollow Ceramic (HSE) or Flat (FTE) |
400°C – 550°C (3.0 – 4.5 W/cm²) |
Fast response hollow design prevents film melt during cycle stops; flat face ensures even heating. |
| Water-Based Ink & Coating Drying | Paper, Cardboard, Non-Wovens | High-Density Flat (FTE) + Blackbody Glaze | 600°C – 750°C (5.5 – 6.8 W/cm²) |
Blackbody glaze maximizes long-wave emission matching water's 6.0 µm absorption peak. |
| Composite Curing & Pre-preg Heating | Carbon Fiber, Epoxy Resins | Hollow Flat (SFE) with Integrated Thermocouple |
350°C – 500°C (2.5 – 4.0 W/cm²) |
Closed-loop PID control prevents resin exotherm and ensures structural integrity. |
Frequently Asked Questions (FAQ)
Q1: Why is surface watt density more important than total wattage when selecting a ceramic heater?
Total wattage only tells you overall power consumption. Watt density ($\text{W/cm}^2$) defines how densely that power is concentrated across the active heating surface, which directly dictates the operating temperature, peak infrared wavelength, and radiant heat transfer rate to your target material.
Q2: What is the benefit of a hollow ceramic heater compared to a standard solid ceramic heater?
Hollow ceramic heaters contain an internal thermal insulation barrier behind the ceramic plate. This directs heat forward onto the target surface, reducing rear heat loss and allowing the element to heat up and cool down up to 40% faster than solid elements.
Q3: How do I know whether to choose a flat or curved ceramic element?
Choose a flat element (FTE) for close-proximity heating (< 100 mm) of flat sheets or webs to achieve a direct, uniform radiant curtain. Choose a curved/trough element (CTE) when mounting heaters further away or in wide reflector banks, as the curved profile creates overlapping radiant arcs that eliminate cold spots between elements.
