I. Core Structure: Outstanding materials create extraordinary performance

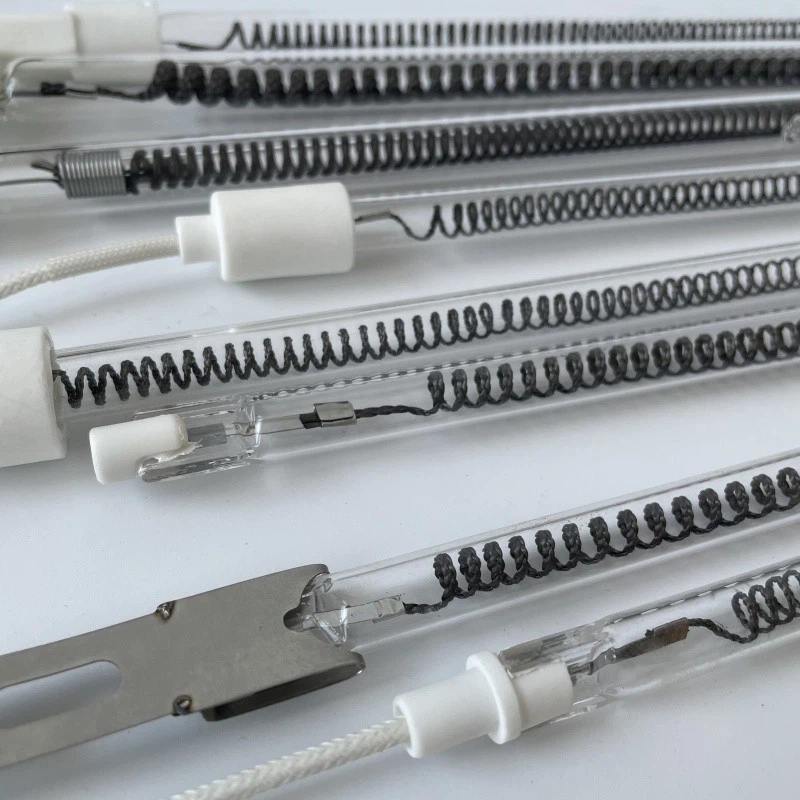

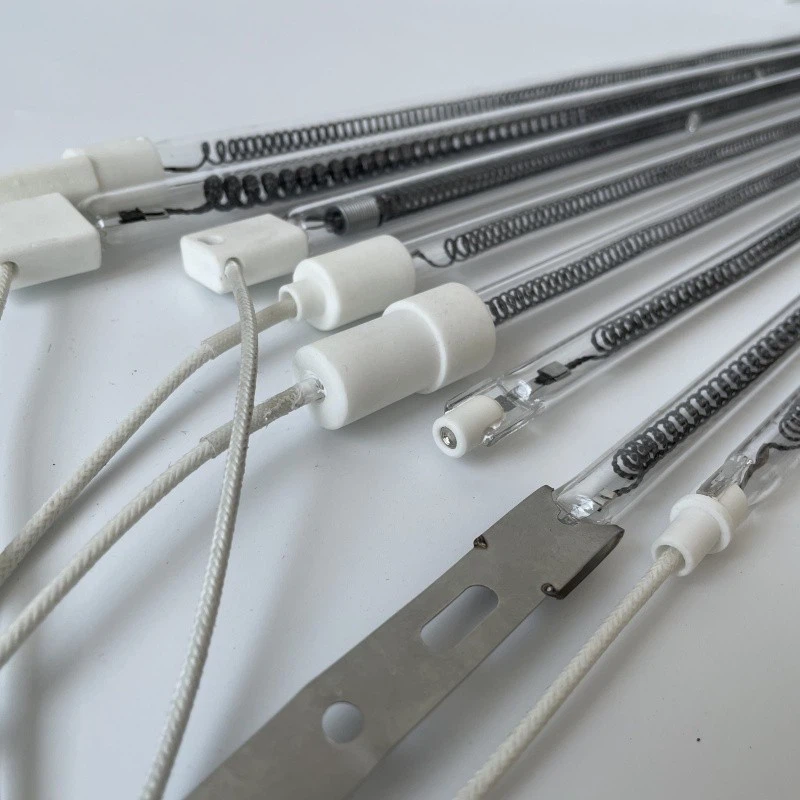

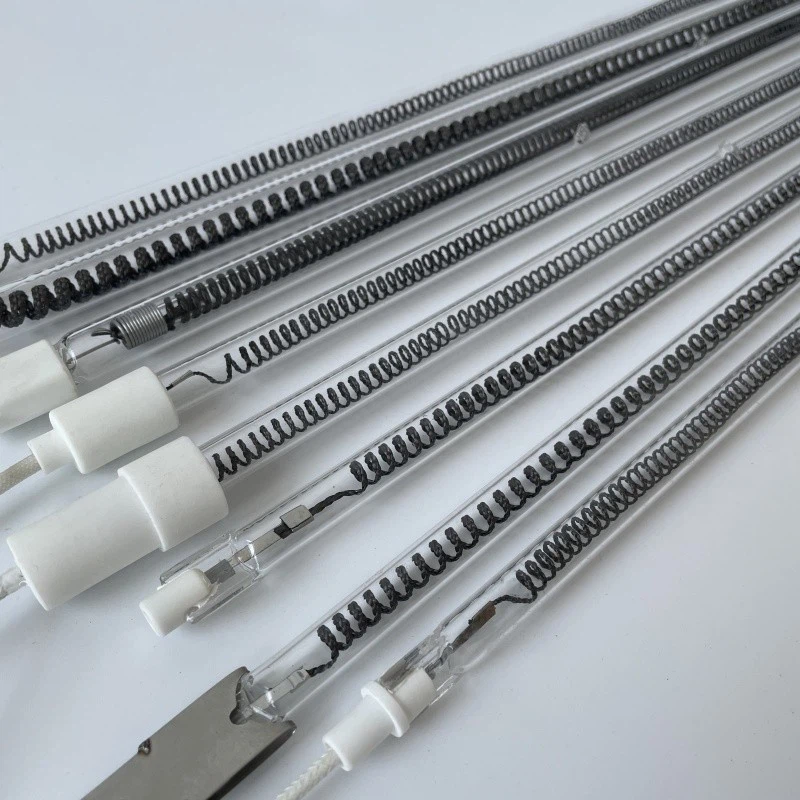

The carbon fiber quartz far-infrared heating tube adopts a multi-layer precise structure design. The core part is a continuous long-fiber carbon fiber bundle, which is made into heating wires with a diameter of 0.5-2mm through a special weaving process. Its carbon content is as high as over 95%, and it has excellent electrical conductivity and heating stability. The outer layer is wrapped with quartz glass tubes of 99.99% purity, with a tube wall thickness of 2-3mm and a light transmittance exceeding 96%. It can efficiently conduct far-infrared radiation and can withstand drastic temperature changes from -30 ℃ to 800℃, with excellent thermal shock resistance.
Both ends of the tube body are encapsulated with high-temperature resistant ceramics, with built-in anti-oxidation electrode pins. The pins are connected to carbon fiber heating wires through advanced welding technology, ensuring a firm weld point that can withstand frequent vibrations without falling off. The pipe opening is equipped with a silicone sealing ring that can withstand temperatures up to 200℃ to ensure overall sealing and prevent water vapor and dust from entering the pipe and affecting its performance.
Ii. Performance Advantages: The unique charm of far-infrared heating
1. High efficiency and energy conservation, cost reduction
Carbon fiber, as a pure blackbody material, has very little visible light during the electric-thermal conversion process, with an electric-thermal conversion efficiency of over 95%. Compared with traditional heating element heaters such as nickel-chromium and tungsten-molybdenum, it saves more than 30% energy. The far-infrared rays it emits are easily absorbed directly by the heated object. During the heat transfer process, the heat loss is extremely small, which can significantly improve energy utilization efficiency. Long-term use can significantly reduce energy consumption costs.
2. It heats up quickly and becomes hot immediately upon opening
At the moment of power-on, a distinct heat can be felt within 1 to 2 seconds, and the surface temperature can reach 300 to 700 degrees within 5 seconds. The thermal lag phenomenon is extremely small, which can quickly meet the heating requirements. Whether it is the emergency heating process in industrial production or the immediate heating in daily life, it can handle it efficiently.
3. Far-infrared radiation is beneficial to health
The radiation wavelength is concentrated in the range of 3 to 14μm, which is known as the "light of life" and accounts for more than 80% of the total wavelength. The far-infrared rays in this band can generate a resonant frictional heat effect with water molecules in the air, rapidly raising the ambient temperature. At the same time, it also has many benefits for the human body. It can activate tissue cells, promote blood circulation, enhance metabolism, and has a certain alleviating effect on arthritis and rheumatic diseases. In food processing, it can retain the original flavor and nutritional components of the ingredients. It is used in the baking varnish process, which can improve the quality of the paint surface, enhance the adhesion, brightness and toughness of the paint film.
4. Ultra-long service life, stable and reliable
Under frequent start-ups, shutdowns and long-term continuous operation, the carbon fiber heating element will not show oxidation or breakdown. The heating light color remains uniform all the time, and the inner and outer walls of the tube remain clean. Under normal use, the average lifespan can reach 6,000 to 8,000 hours, and some high-quality models can even exceed 15,000 hours, reducing the frequency of replacement and maintenance costs.
5. Safe and environmentally friendly, green without worries
There is no open flame or light pollution during the working process, and it will not irritate the eyes or burn the skin. It contains no ultraviolet rays, harmful gases or high-frequency radiation. It only releases far-infrared radiation that is beneficial to the human body and does not generate electromagnetic fields or surge currents. The high-purity dehydroxylated quartz glass tubes adopted have an extremely low coefficient of thermal expansion and extremely high thermal stability. They are not prone to cracking even when subjected to drastic temperature changes. Meanwhile, quartz glass tubes are also excellent acid-resistant materials (except for hydrofluoric acid), with an acid resistance 30 times that of acid-resistant ceramics and over 100 times that of stainless steel (nickel-chromium alloy), and can operate safely and stably in various complex environments.
Iii. Specification Parameters and Customization Services
1. Standard specifications
Pipe diameters are available in multiple options such as 8mm, 10mm, 12mm, 16mm, and 20mm, and the length range is from 100mm to 1500mm, which can meet the installation requirements of different equipment and scenarios. The power range is 100W-2000W, which can be flexibly adjusted according to actual heating requirements to achieve precise temperature control. It supports multiple voltage specifications such as 110V, 220V, and 380V, and is suitable for different power systems.
2. Customization options

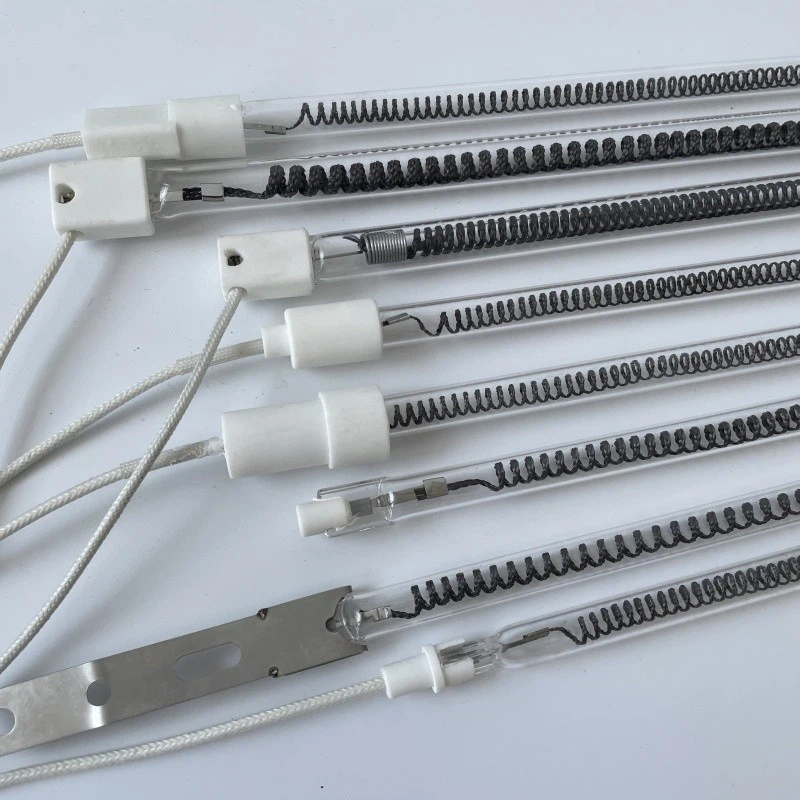

Support customization based on customers' special needs. Different pipe diameters, lengths and powers can be customized to meet the installation and heating requirements of specific equipment. The lead-out methods are diverse, including single-tube lead-out type at both ends, single-ended single-tube lead-out type, double-hole lead-out type at both ends, and single-ended double-hole lead-out type, etc., which are convenient for users to connect circuits. In addition, products with special coatings or structures can be customized according to the specific requirements of the usage scenarios to enhance the adaptability and performance of the products.
