Type:

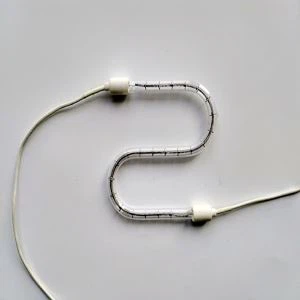

Medium-wave infrared:The infrared radiation wavelength of medium-wave quartz heating tubes is concentrated in the range of 4-8μm, which lies between short-wave (2-4μm) and far-infrared (5-15μm). It combines the advantages of both - it can penetrate the surface layer of objects by 1-2mm to achieve deep heating, while maintaining a mild thermal sensation to prevent local overheating. This characteristic makes it perform exceptionally well in scenarios that require "uniform heating + moderate penetration", such as textile setting and wood drying, which are temperature-sensitive processes.
Compared with short-wave halogen tubes, medium-wave tubes have greater thermal inertia, and the temperature decay rate after power-off is reduced by 40%, making them suitable for equipment that requires stable constant temperature. Compared with far-infrared carbon fiber tubes, its heating rate is 30% faster and it can reach the working temperature within 5 to 8 seconds, achieving a balance between efficiency and stability.
Technical parameters：
| Medium-wave infrared (IR) | |||||||
| Model | Power (W) |
Voltage (V) |
Color temperature (K) |
The peak wavelength (um) |
Life (H) |
Diameter (mm) |
Size (mm) |
| IR-1 | 300 | 120 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
| IR-1 | 325 | 120 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
| IR-1 | 400 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
| IR-1 | 500 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 200-450 |
| IR-1 | 600 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 250-600 |
| IR-1 | 800 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 8-10 | 250-800 |
| IR-1 | 1000 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 10-12 | 300-1500 |
| IR-1 | 1200 | 120-240 | 980-1380 | 2.5-4.5 | 5000 | 10-12 | 350-1500 |
| IR-1 | 1500 | 120-380 | 980-1380 | 2.5-4.5 | 5000 | 10-12 | 350-1500 |
| IR-1 | 1800 | 120-380 | 980-1380 | 2.5-4.5 | 5000 | 10-12 | 350-1500 |
| IR-1 | 2000 | 120-380 | 980-1380 | 2.5-4.5 | 5000 | 10-12 | 350-1500 |
Market and Service Capabilities
Customization Services
Support the development of non-standard products based on drawings or samples, offering customization in:
Materials (stainless steel/Incoloy, etc.)
Dimensions (diameter 3-25mm, length 25-2000mm)
Installation methods (threaded/flange/clamp, etc.)
Global Delivery
Lead time: 3-7 days for samples; 5-25 days for batch goods.
Support trade terms including FOB, CIF, DDP, etc.
After sales service
1. Package tracking
2. One year guarantee
3. Technical support
4. 12 hours wking time
5. Discount for reorder
6. Replacements for quality problems
7. Confidentiality of customer information
Summary of Enterprise Advantages
Hongtai, with "technology-driven + quality first" at its core, has formed three major competitive advantages in the industrial heating field with nearly a quarter of a century of industry experience:
Full category coverage: From standard heating elements to high-end customized solutions, meeting the demands of multiple industries such as chemical engineering, new energy, and medical care;
Certification barriers: Complete qualifications such as CE, UL, and RoHS, meeting the access requirements of mainstream global markets;
Cost control: With large-scale production and localized supply chain management, the price is 15%-30% lower than that of European and American brands while ensuring quality.
If you need to obtain specific product parameters, quotations or sample tests, you can contact and connect through the enterprise official website or cross-border e-commerce platforms (Alibaba International Station, Global Sources).
With 20 years experience, Hongtai Alloy is your trusted source for quality medium wave quartz heater tube as one of the leading suppliers of various heaters in China. Providing you with the most competitive price, we welcome you to buy the heater from our factory.Hot Tags: medium wave quartz heater tube, China, suppliers, manufacturers, factory, wholesale, price
