Hongtai produces hot runner heater by placing nickel chrome resistance wire in the tube made of nickel steel filled with magnesium oxide powder for effective heat transfer. The heaters are made to acquire strength so that it could be bent into any shape. Tape Heaters, Heater Pads and Thermocouples are also available

Features:

1. Sheath temperature upto 800oC

2. Higher watt densities

3. Build in Type "J" (or) "K" Thermocouple

4. Available in following cross sections : 3mm X 3mm,3.3mm X 3.3mm,3.7mm X 3.7mm,4.5mmX4.5mm,4.2mm X 2.2mm,3.2mm X 1.8mm,O 1.8mm,3.3mm,3.7mm

5. Rugged & Durable Construction

6. Available as per customer's specifications

Applications:

1. Moulds & Dies

2. Nozzle heating

3. Sprue Bushing

HOW TO ORDER COILED MICRO TUBULAR HEATER

1. Watts & Volts

2. Cross Section

3. ID, OD & Length

4. Termination style

5. Thermocouple if required Specify Type "J" (or) "K" Grounded (or) Ungronded

6. Number of coil in L1, L2 & L3

7. Coil total Length T.L, L1, L2, & L3

8. Connection lead option, lead length and lead orientation

9. Drawing or sample for special type configuration

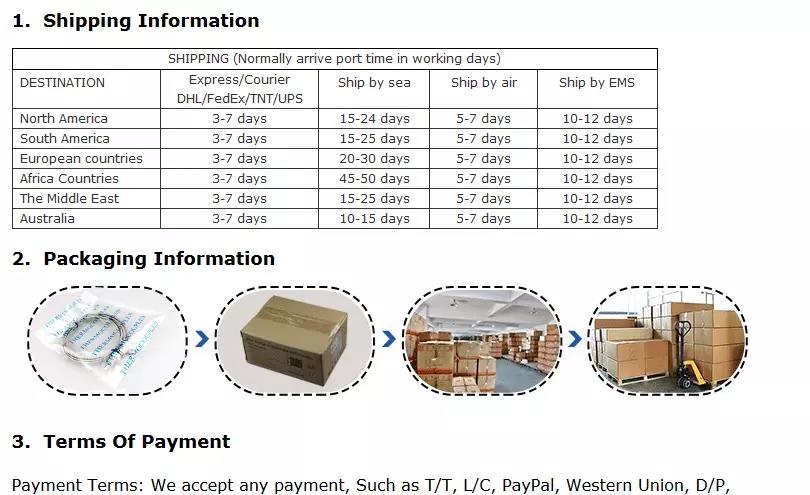

Shipping:
