Product Description
Ceramic band heaters are widely used for the barrels of plastic injection molding machines, extruders, tanks and in a broad range of other industrial applications. Ceramic band heaters can support up to 760°C(1400°F) and will remain low temperature on the outside. Consisting of stainless steel housing surrounding stacked ceramic tiles. A 6 mm thick ceramic fiber blanket of insulation is used to reduce power consumption by 25-30%, in comparison to band heaters without insulation. The ceramic fiber provides low thermal conductivity. That’s why the temperature of the external surface of the heater can be lower than the interior operational temperature.
Ceramic band heater distributes heat through conduction and radiation. Ceramic band heaters consists of a resistance coil made from nickel-chrome wire, heat the ceramic blocks to a temperature point at which they radiate energy into the barrel as well as conduct energy by being in contact with the barrel.
Ceramic band heaters are manufactured in a full range of standard construction options, dimensions, electrical ratings and complete variations of screw terminals and lead terminations.
► APPLICATIONS
Plastic injection molding
Blow molding
Plastic extruders
Plastic & Rubber Processing Machinery
Pipe heating applications
► FEATURES
Good Temperature Uniformity
Thermal Insulation, minimum Heat Loss
Customized to customer needs
Easy to install, long service life
► TECHNICAL SPECIFICATION
Specific surface load up to 8 W/cm²
Working temperature up to 500°C
External stainless steel sheet, resistant to high temperatures
Nickel-Chrome 80/20 resistance coil
High purity ceramic insulation
Ceramic fiber insulation
Heater’s standard thickness 12 mm

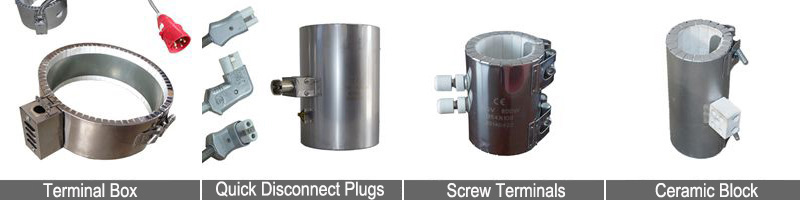

► TERMINATIONS
► PLEASE SPECIFY THE FOLLOWING WHEN ORDERING
A and B are required.
Voltage and Wattage.
Terminations type and the position.
The position and size of the thermocouple holes if required.
OPTIONS
► The air cooled band heater with blower, terminal box and shroud.
This system was designed for high temperature heating and cooling extrusion processes. Forced air blowers are used for cooling. The ambient airflow enters the shroud, circulates around the ceramic heater and barrel, removes the heat from the heater and exits the shroud opposite the entrance port.
