Product Description

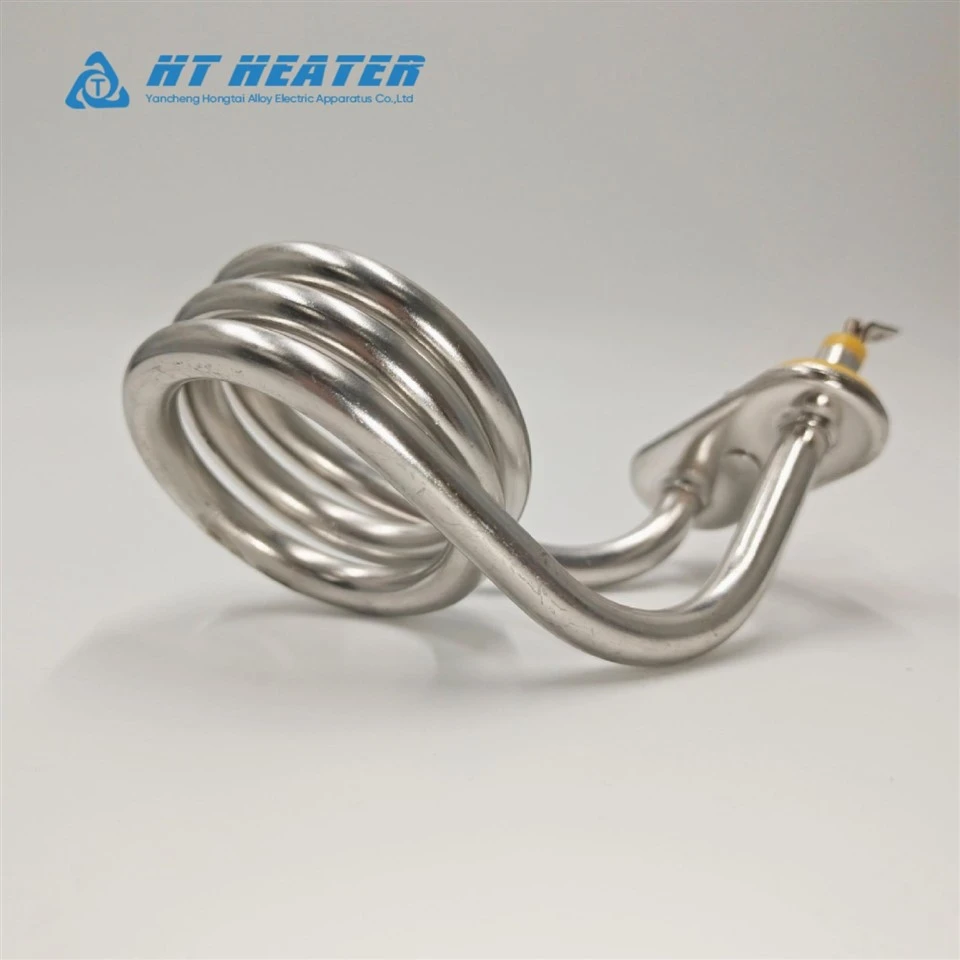

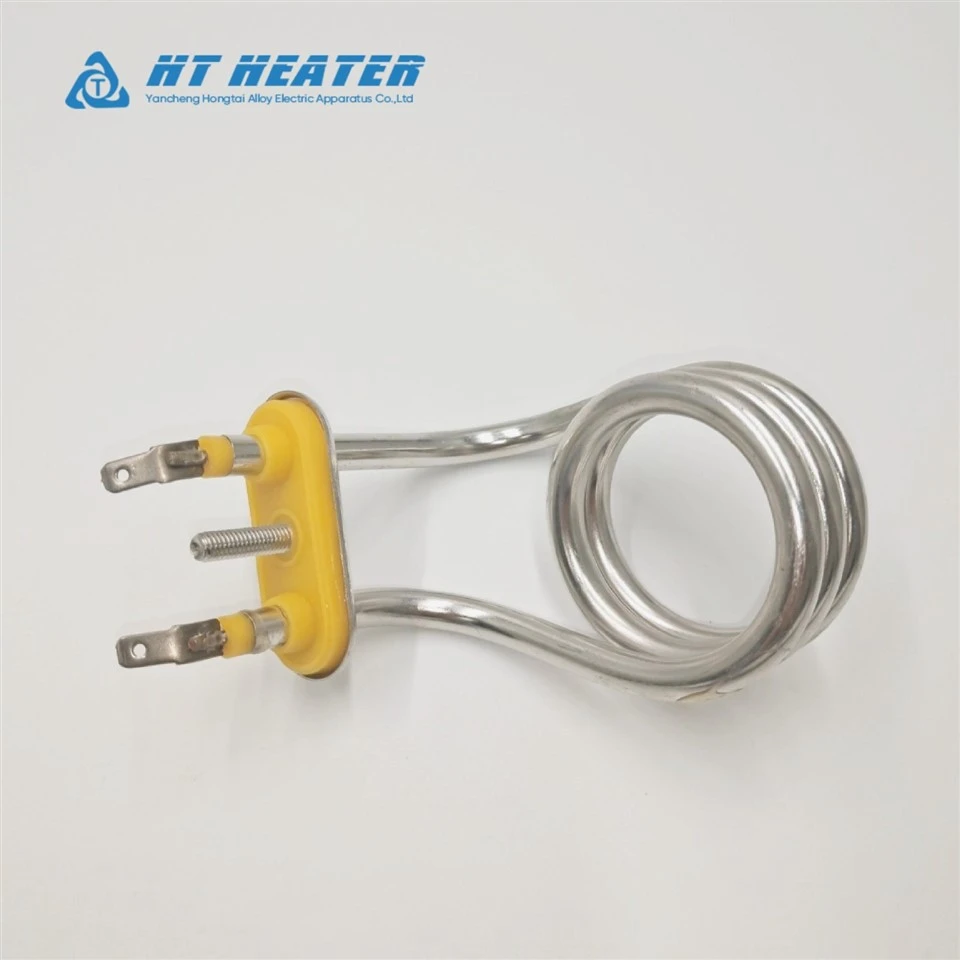

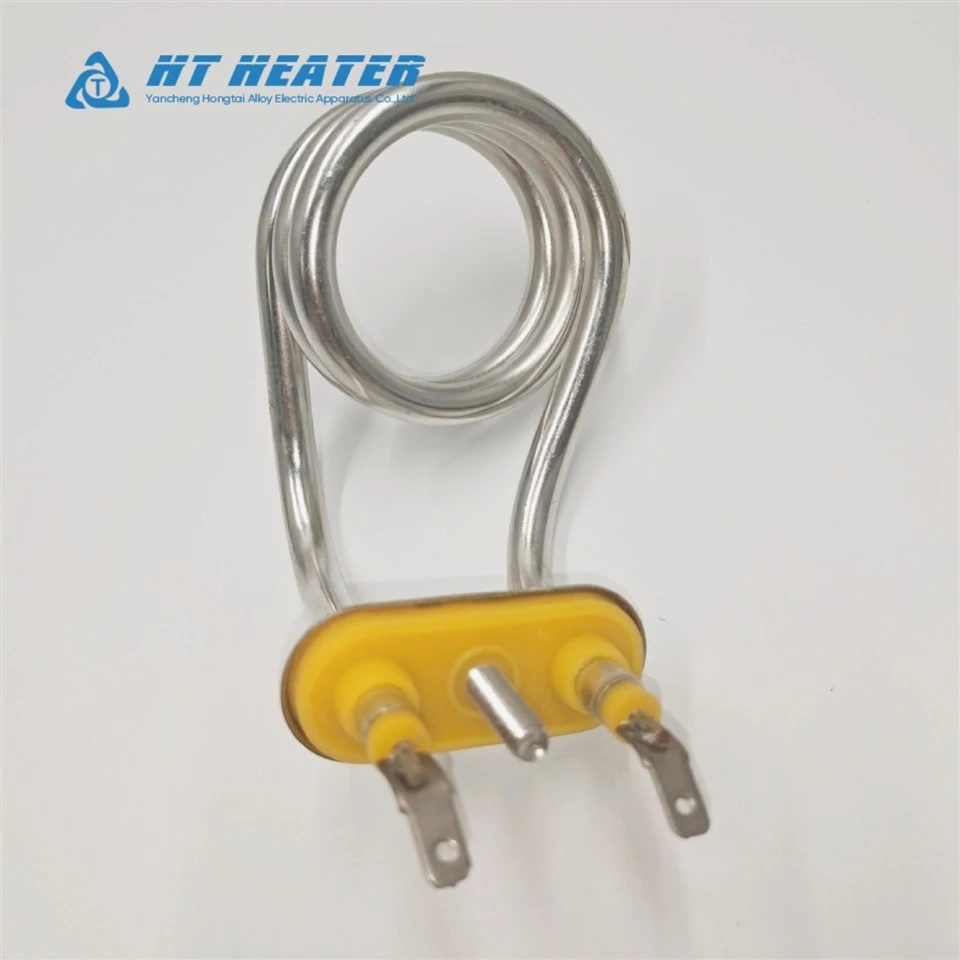

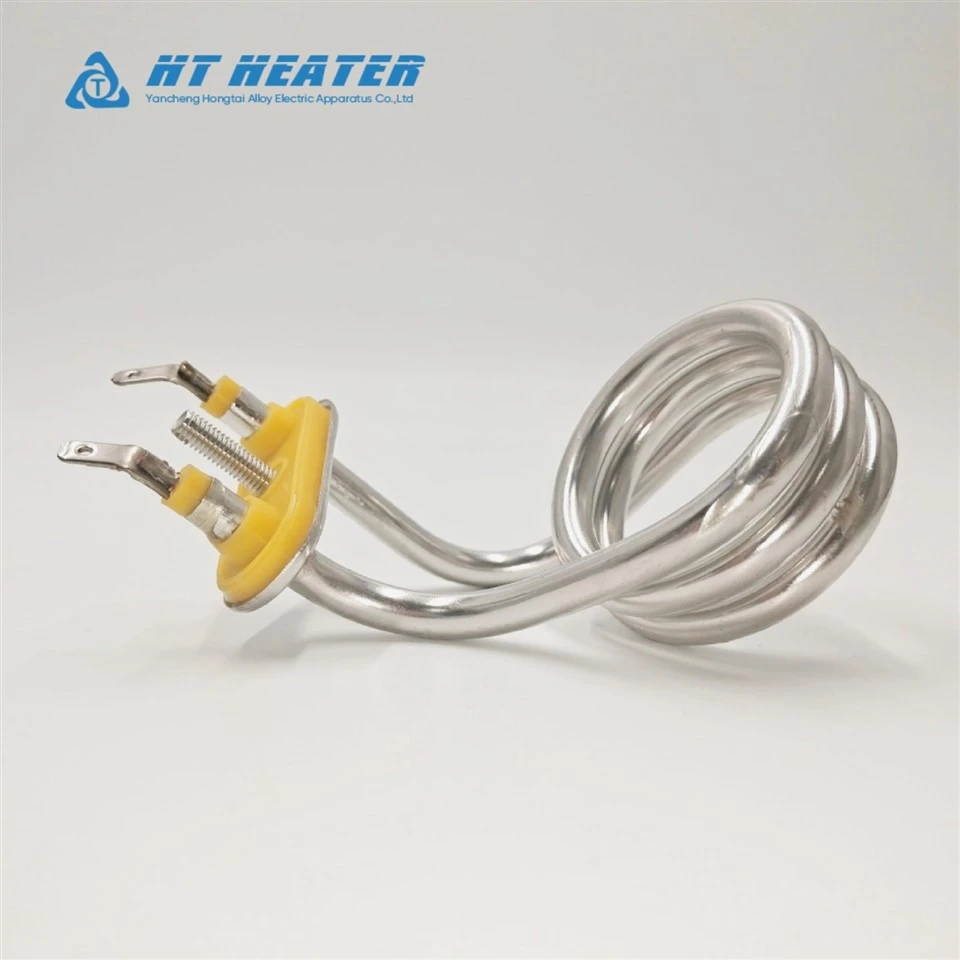

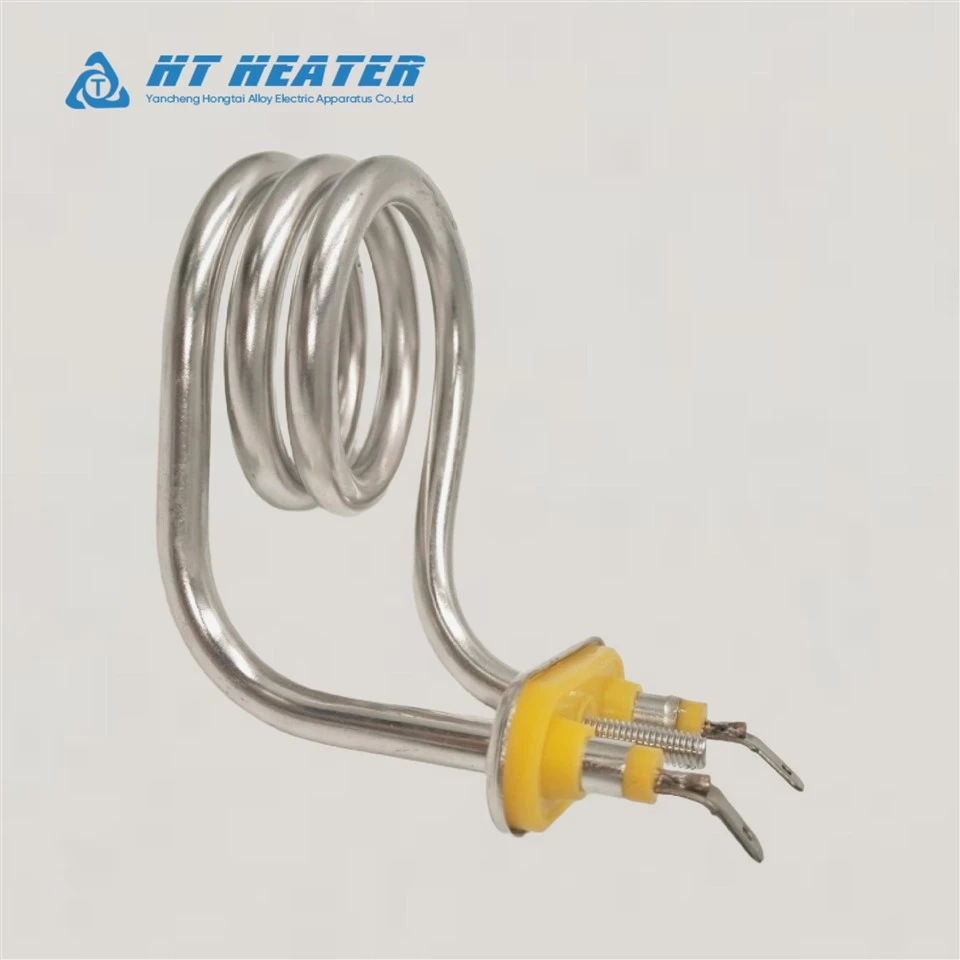

Available in overall heights ranging from 50mm to 300mm, this spiral coil immersion heating element is engineered primarily for water boilers, commercial electric kettles, distillation tanks, and other compact liquid heating systems. The spiral immersion heater is constructed with a high-grade SUS304 / SUS316L stainless steel outer sheath, compacted with high-purity magnesium oxide (MgO) insulation and a heavy-duty NiCr resistance wire core utilizing advanced precision manufacturing processes. Its engineered helical spiral coil geometry significantly maximizes the active heat transfer area within limited vessel footprints. Key features include a space-saving profile, rapid thermal recovery, consistent heating accuracy, and an extended service life. Each unit comes standard with a stamped metal mounting bracket with high-temperature electrical isolation bushings and fast-on spade terminals to ensure quick installation and dependable electrical connectivity.
Specification
| Item | Parameter / Specification |
|---|---|
| Product Name | 220V spiral coil immersion heating element for boiler |
| Operating Voltage | 110V, 220V, 230V, 240V (220V standard) |
| Wattage | 1000W - 3000W (Custom engineered) +5% / -10% tolerance |
| Tube Diameter | Φ6.5mm, Φ8.0mm, Φ10mm (± 0.1mm) |
| Coil Outer Diameter | 40–120mm (± 1.0mm) |
| Coil Height / Turns | 2–6 spiral turns (Customizable per tank depth) |
| Tube Material | Food-grade SUS304 / SUS316L / Incoloy 800 |
| Insulation Material | High-purity compacted MgO powder |
| Inner Heating Element | NiCr8020 resistance wire |
| Mounting Interface | Oval / diamond stamped flange with center grounding stud |
| Terminal Connection | Quick-connect spade terminals (6.3mm) / threaded studs |
| Max. Sheath Temperature | Up to 400°C |
| Cold Insulation Resistance | ≥100MΩ at 500V DC |
| Dielectric Strength | 1800V AC / 1 sec (Cold state) |
| Delivery Time | 3-5 days (10-500pcs) / 7 days (more than 500pcs) |
Available In Following Custom Features
-
Coil Form Factors: Single-layer spiral coil, multi-layer helical coil, vertical or horizontal bend orientations.
-
Flange & Bracket Types: Oval stamped flange, brass hex screw plug (G1", G1.5"), high-temperature ceramic or engineering plastic insulating spacer.
-
Terminal Terminations: Standard 6.3mm flat tab push-on terminals, threaded studs with hex nuts, or pre-attached high-temperature leads.
Application
- Commercial Water Boilers & Beverage Dispensers
- Electric Kettles & Automatic Tea/Coffee Machines
- Laboratory Water Distillers & Sterilizers
- Food Steamers & Warming Tanks
- Industrial Process Tanks & Rapid Fluid Pre-Heaters
