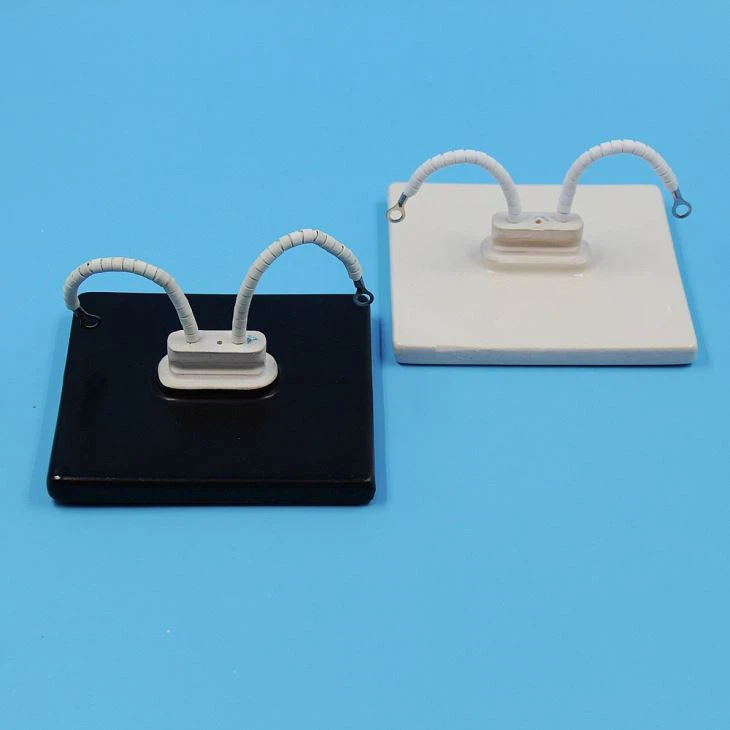

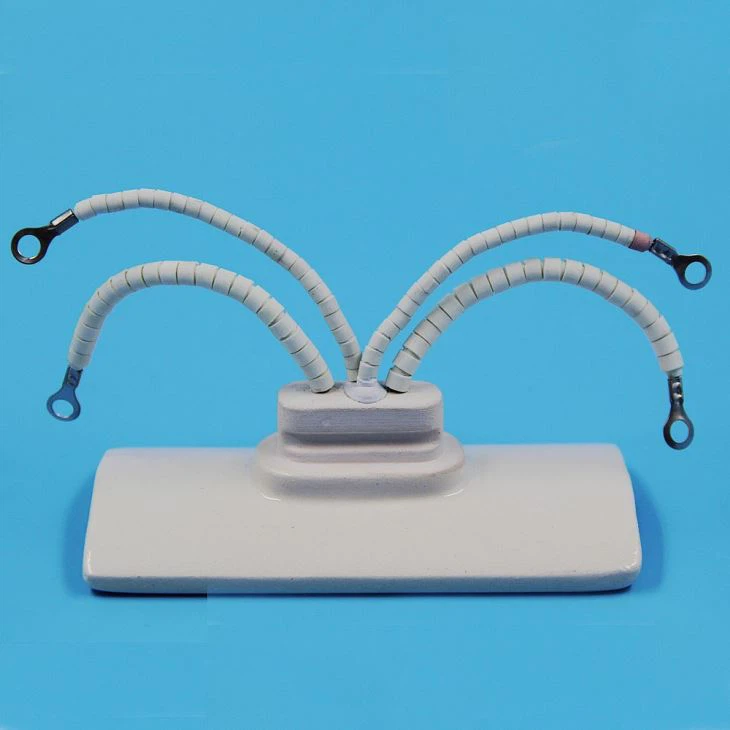

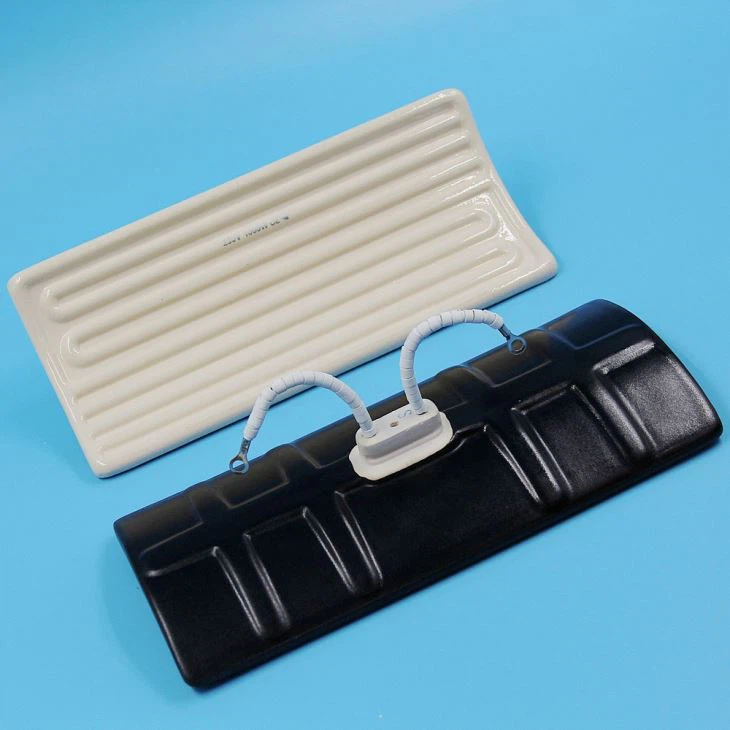

ceramic far infrared radiated heating elements are produced based on direct of international advanced technique and many years’research,with high conent of technology,good whole property,cleanness & sanitation,convenient assemble,acid-resistance,erodibility-resistance
Safe use,long life span ect.Widely used in vacuum plastic uptake,food roast, medical treatment and sanitation ect various infrared dryness and roast,solidify ect.They have ideal energy saving effect in the industry such as electron spin,light industry, electromechanical chemical industry, medical treatment,food industry ect and have obvious society benefit and economy benefit.
Main technical parameter and property:
1. Rupture strength for base body: | 440Kg/cm2 |
2.Resistance in common temperature: | 1012 ohm 0cm |
3.Property:good chemical stability;strong causticity-resistance;perfect oxidation-resistance | |
4.Heat losing in the non-radiation surface is small | |
5.The base body is heated to 800 C and put in cold water repeatly for ten times and no cracking. | |
6.The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage. | |
7.The max radiance of element>0.9 | |
8.The effect of energy saving is obvious,increasing 10-25% compared with silicon carbide element | |
9.The life span can prolong more than a few times compared with silicon carbide element. | |
Specification:
Size(mm) | Shape | Power(Kw) | Size(mm) | Shape | Power(Kw) |
245×65 | arc | 0.25-1.0 | 300×300×16 | flat | 0.8-1.5 |
240×60 | arc | 0.5-1.0 | 240×160×16 | flat | 0.6-1.0 |
125×65 | arc | 0.2-0.5 | Φ70 | disk | 0.1-0.2 |
120×60 | flat | 0.1-0.325 | Φ100 | disk | 0.2-0.3 |
120×60 | arc | 0.1-0.325 | Φ140 | disk | 0.3-0.4 |
120×120 | flat | 0.1-0.8 | Φ150×Φ100×Φ60 | haff | 0.25-0.3 |
120×120 | arc | 0.1-0.8 | 125×125 | flat | 0.4-0.8 |
