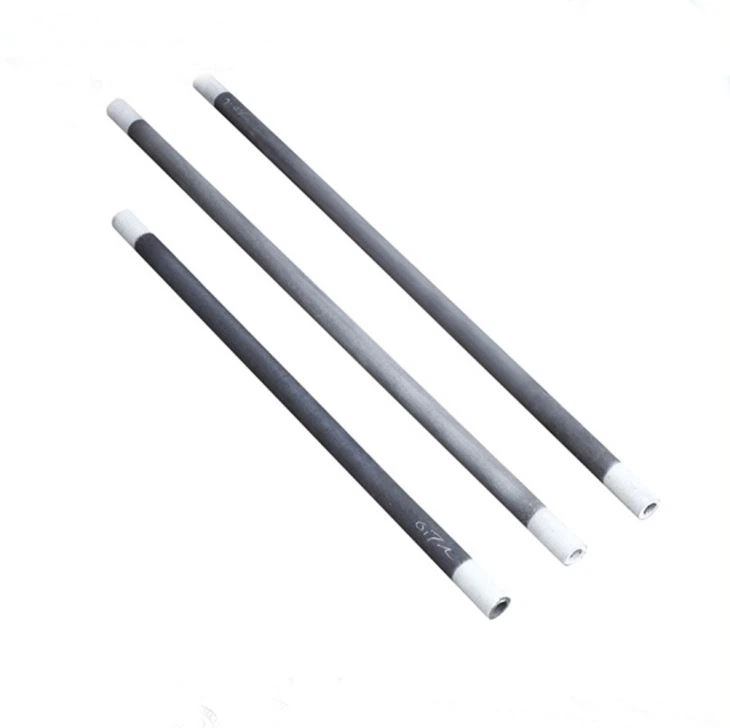

Furnace Electric Silicon Carbide Sic Rod Heater
silicon carbide heating rod are used in a wide variety of furnace applications, from small laboratory furnaces to large industrial heating processes, in different atmospheres and temperature ranges. The elements allow great freedom in furnace design which combined with simple installation and a long operating life, makes them the preferred choice in many applications including; The glass, ceramics, electronics and metals industries, and also for research and development.
Sic Heating Element Features
1) Non-metallic heating element, based on material of high quality green silicon carbide.
2) Compared with metal, SiC heating element is characterized by anti-oxidation, corrosion resistance, long service life, deformation, easy installation and maintenance.
3) Widely used in multiple high temperature furnace(magnetic material, powder metallurgy, ceramic, glass, metallurgy and mechanical used) and other electric heating devices
4) SiC heating element can be used in air atmosphere without any protect atmosphere.
Shapes: ED, GC(DB), U, W, UL, SC, SCR, UX
Diameter: 8mm, 10mm,12mm, 14mm, 16mm, 18mm, 20mm, 25mm,30mm,35mm, 40mm, 45mm, 50mm and so on.
Technical parameter of rod type silicon carbide heating element
Diameter (OD, mm) | Hot zone (HZ, mm) | cold zone (CZ, mm) | Overall length (OL, mm) | Range of resistance (ohms) |
12 | 150-300 | 150-200 | 450-700 | 1.85-3.15 |
14 | 200-400 | 200-250 | 600-900 | 1.22-2.40 |
16 | 300-600 | 250-350 | 800-1100 | 1.60-3.00 |
20 | 300-900 | 300-400 | 1100-1500 | 1.14-3.10 |
25 | 300-1000 | 300-450 | 900-1600 | 0.75-2.40 |
30 | 400-1100 | 300-500 | 1000-1800 | 0.70-1.82 |
31.7 | 356-1499 | 280-406 | 916-2261 | 0.5-2.25 |
35 | 40-1700 | 300-400 | 1200-2300 | 0.68-2.89 |
38.1 | 406-1422 | 280-394 | 966-2210 | 0.4.-1.36 |
40 | 500-1700 | 300-400 | 1300-2300 | 0.60-2.02 |
44.4 | 508-2437 | 280-432 | 1068-3277 | 0.36-1.66 |
50 | 1000-2000 | 400 | 1800-2800 | 0.73-1.46 |
54 | 508-2438 | 305-458 | 862-3278 | 0.30-1.40 |
Product Picture
Accessories for SIC Induction Heater
Packing Package:
