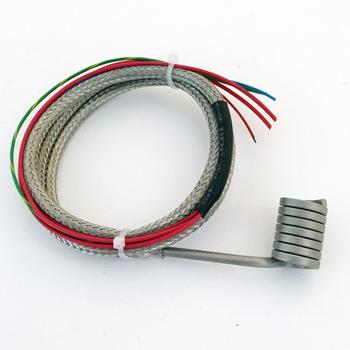

 | 1) Product Name: Coil Heater 2) Inner Diameter: 16.9mm 3) Coil Height: 60mm 4) Voltage: 220V 5) Power: 580W 6) Thermocouple: No 7) Earth Wire: Available 8) Lead Material: SS braid 9) Lead length: 1m |
Features
1. Hot Runner Heating Coil Air Heater also know as cable heaters can be formed to a variety of shapes as required by its many application.
2.Frequenty though,coil heaters are configured as samll diameter,high performance nozzle heaters that are fully annealed.
3.Spring hot runner coil heates are use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.
4.Hot runner coil heaters are also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations.
Specification
Heating section | 2.2x4.2mm 3x3mm 3.4x3.4mm 3.5x3.5m 4x4mm |
Heating coil ID | 8mm~40mm |
Heating ring height | 10mm~200mm |
Voltage | 15V~380V |
Wattages | 200W~3000W |
Build-in thermocouple power | With or without J/K thermocouple |
Lead wire | 500/1000/1200/1500/2000mm |
Available In Cross Section
Square:3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4 etc.
Circular:4 x 2, 4 x 2.50
Any other cross sections can be manufactures and supplied on request.
Advantage
1.simple structure
2.long-time usage
3.high efficient heater exchange
4.it could easy to bent into many kinds of shape
5.good insulation could withstand high voltage
