Description
In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, anti-pollution, etc.

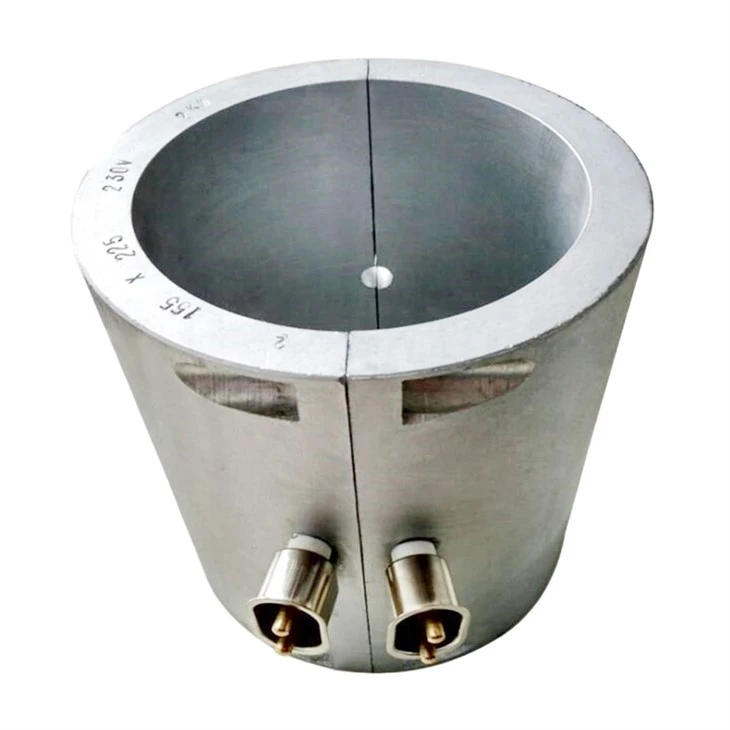

Aluminum Cast Heaters can be casted into any shape and size needed, thus fully covering the part to be heated and virtually becoming the part itself. Our aluminum heaters are customized according to your specifications.
Specification
| Sheath Materials | Aluminum |
| Power( w/cm2) | 2.5~4.5, 4.5~6.0,3.5~5 |
| Voltage | 120, 240, 480, or as customized |
| Termination's | Leads, Terminal Boxes, Screw,Threaded Studs, Plug etc. |
| Maximum Temperature | 400 deg.C or 752 deg.F |
| Options | Holes, Grooves, Notches, Cutouts, Available |
| Leakage current | <0.5MA |
| Insulation Resistance | > 2MΩ |
| Grounding Resistance | <0.1Ω |
Features
•Gravity moulding ensures an excellent material homogeneity and thus a perfect heat transfer.
• Constant surface temperature is achieved through appropriate forming
• As this is indirect heating, the heating, the heating resistance is protected. The solid or fluid to be heated is not in contact with the resistance.
• High protection against corrosion
• The end-to-end control of the design and production chain alloows us to deliver a product which suits your process perfectly
Application
» Injection molding•Heating barrels of plastic injection molding machines and extruders
» Die and die holder heating of plastic extruders and blow molding machines
» Plastic extrusion
» Burn-out ovens
» Process applications
»Fluidized beds
»Heat treating pipes
