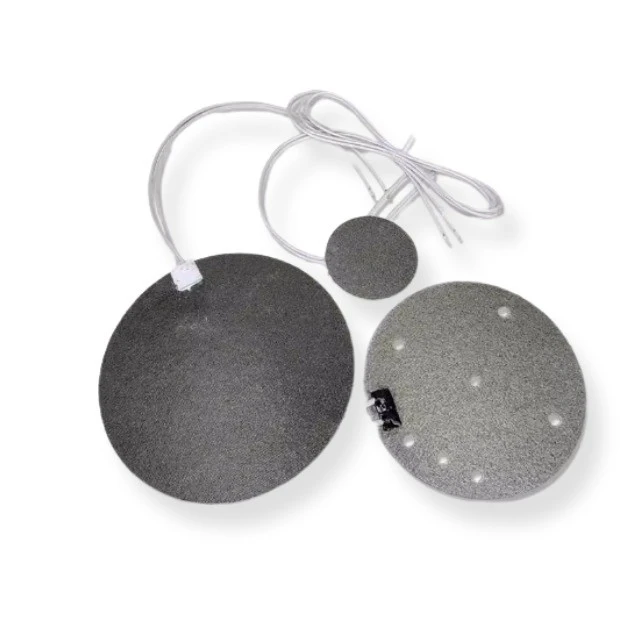

Mica Temperature Resistance Plate Heater

Mica heating plate using mica plate (mica sheet) good insulating properties and its high temperature resistance, it is a mica plate (sheet) for the skeleton and insulation layer, supplemented by galvanised sheet or stainless steel plate for the support of the protection, can be made into a plate, slice, cylindrical, conical, simple, round, and other various types of heating devices, the design of the power as high as 1,000W, can withstand temperatures of 600 ° C, the power density of up to 6W/cm2 is the first choice for industrial and electrical heating products. and electrical heating products of choice.

Send Inquiry

Cartridge Heater With Thermocouple

Mica Round Heater Plate Element

Description

Voltage range	0-220v
Withstanding Voltage	>5kv
Insulation resistance	≥100MQ
Maximum operating temperature	600°C (Long-term below 550°C)
Operating temperature range	-20°C-550°C
Product Thickness	1.0mm-3.0mm (the rest can be customised)
Power	100-1000W
Wire Pull	≥20N
Weld Point Pull	≥20N
Power Density	2-6W/cm²
Service life	10 years
Product Specification	Can be customised

Main Features:

1.Heat-resistant, endure high temperature as 600℃.

2.Good insulation property,insulation resistance is bigger than 100MΩ.
3.Light weight, thin thickness,small volume,big power.
4.It can be easily designed any shapes according to demand, low cost.
