Name
|

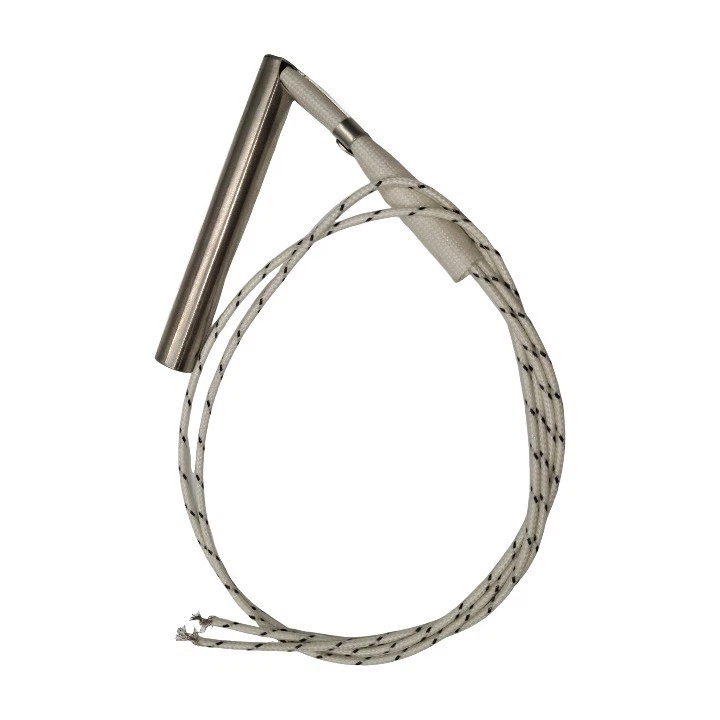

cartridge heater
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance tolerance
|
+10%, -5%
|
|
Voltages available
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
Max operating temp
|
870ºC(1600F)
|
|
Length tolerance
|
± 2% or 3.2mm (1/8"), whichever is greater.
|
|
Camber tolerance
|
1.7mm per meter (0.020" per foot).
|
|
Diameter tolerance
|
Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")
|
|
Standard Unheated Area
|
5-10mm;
|
|
Internal thermocouple
|
type J or K;
|
|
Thermocouple Location
|
Disc End, Sheath, Center of Heater;
|
|
Insulation resistance (cold)
|
≥ 500 MΩ;
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA;
|
|
Diameter
|
from 3.0mm to 30mm;
|
Application
* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
