Specification of the Band Heater
|
Product Name
|

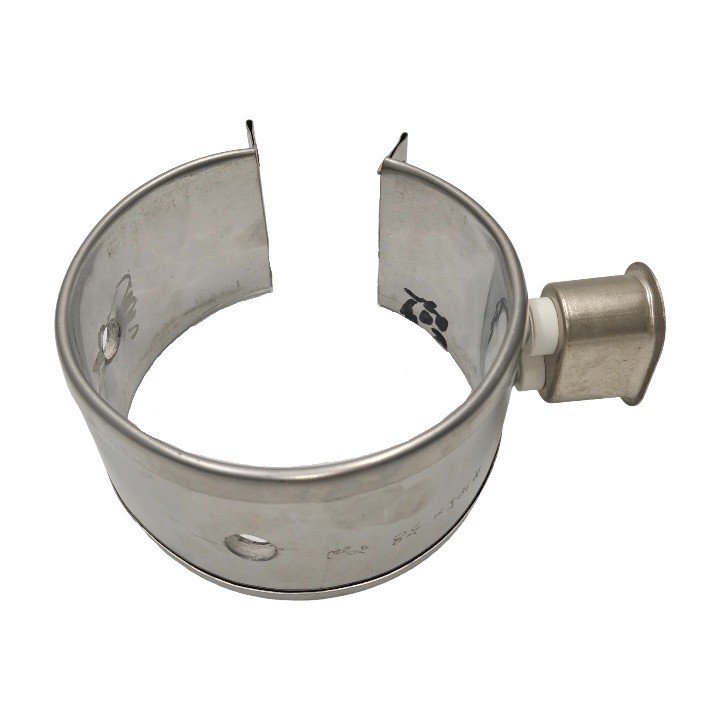

Mica Band Heater
|
|
Insulation material
|
Mica Sheets
|
|
Standard thickness
|
3-5mm
|
|
Resistant wire
|
Cr20Ni80/Cr25Al5
|
|
Power Tolerance
|
+5%,-10%
|
|
Resistance Tolerance
|
+10%, -5%
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Length tolerance
|
±1 mm
|
|
Diameter tolerance
|
±1 mm
|
|
Terminal
|
Ceramic Terminal/Flange/Lead Wire
|
|
Gap Between the Clamping Edge
|
5-10mm
|
|
Insulation Resistance (Cold)
|
≥20 MΩ
|
|
Certification
|
CE ROHS
|
