Product Overview

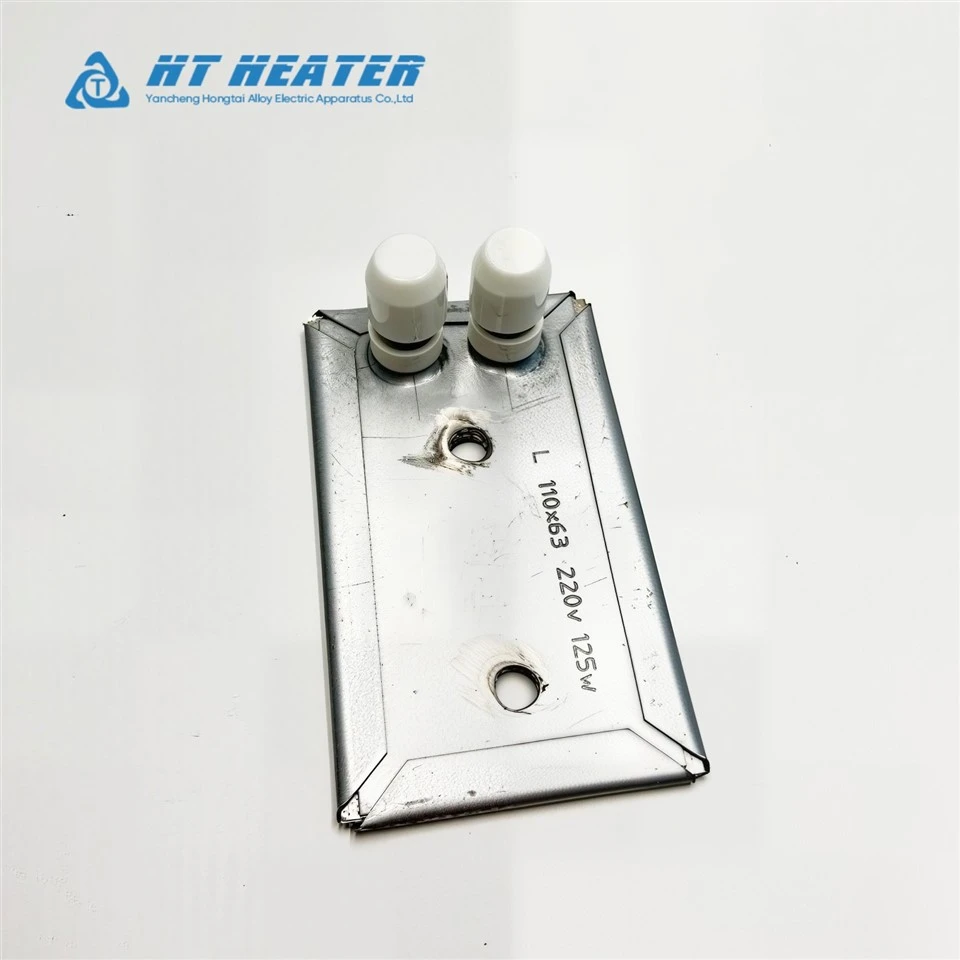

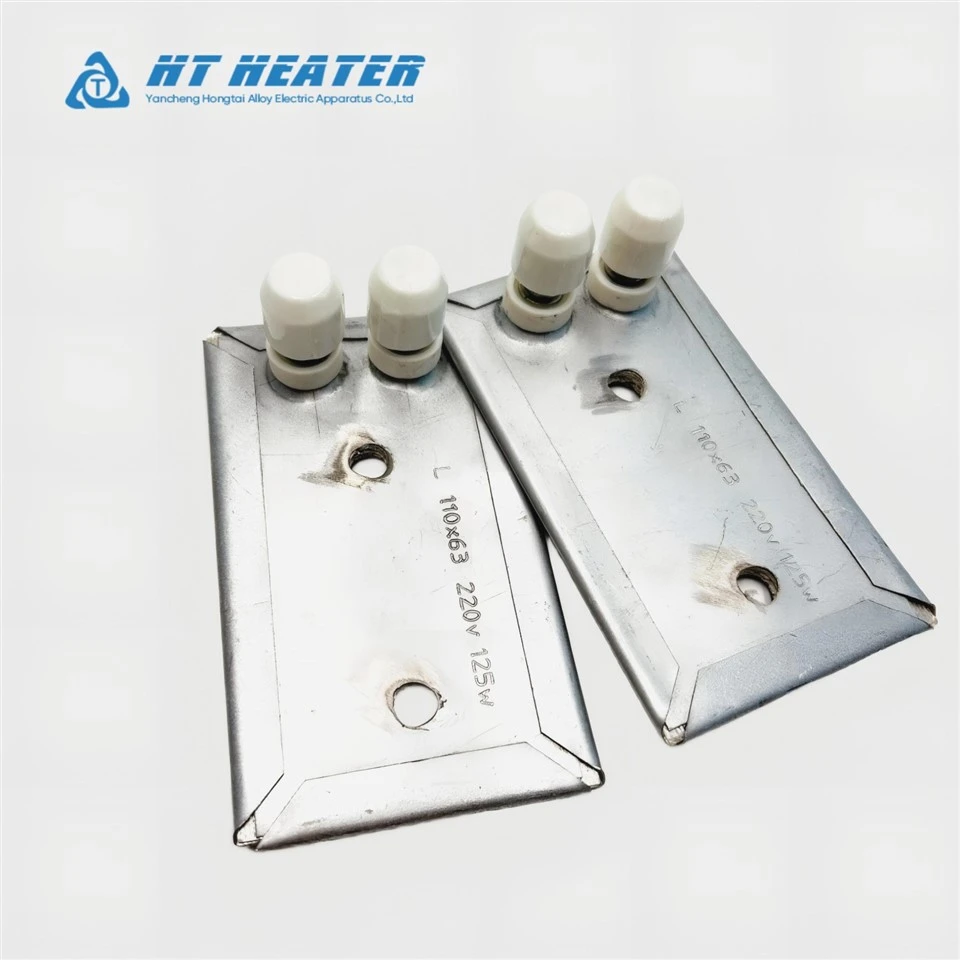

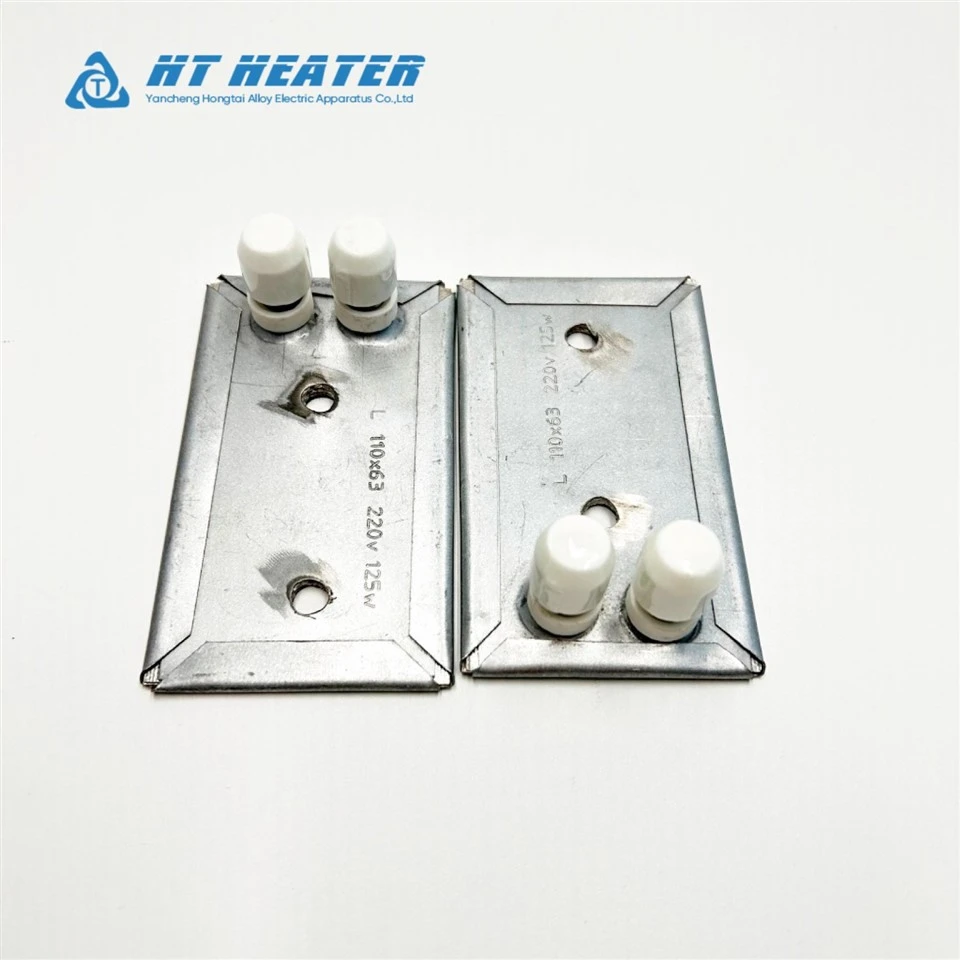

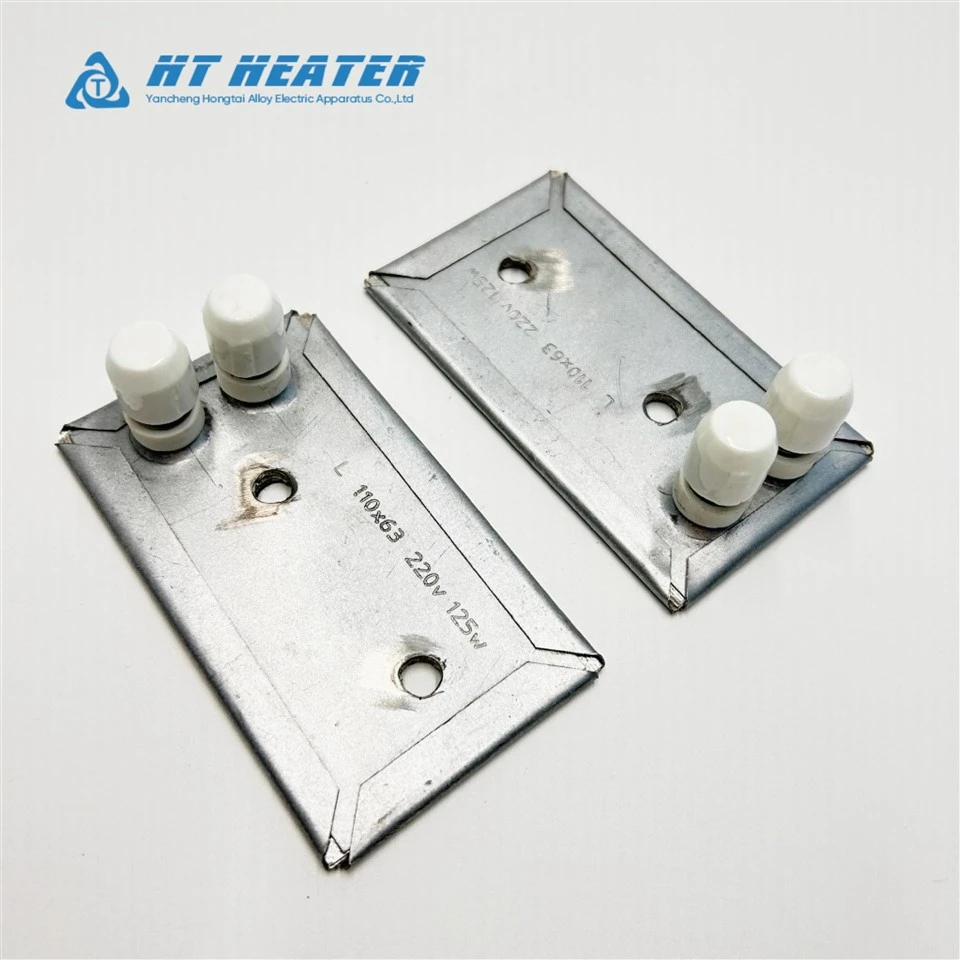

This industrial-grade flat mica plate heater is engineered for direct conductive surface heating in packaging, heat-sealing, and flat-bed press equipment. As shown in the referenced file "220V 125W Flat Stainless Steel Mica Strip Plate Heater.jpg", the unit features a folded stainless steel sheath encasing a high-grade mica insulation board and precision-wound NiCr resistance ribbon. The heater is equipped with pre-drilled mounting holes and ceramic insulated terminal caps to facilitate secure mechanical and electrical integration in industrial machinery.
Technical Specifications
| Specification Item | Parameter / Description |
| Model / Part Number | HT-MICA-220V-125W-110X63 |
| Manufacturer |
Yancheng Hongtai Alloy Electric Apparatus Co., Ltd. |
| Operating Voltage |
220V AC (Single-Phase) |
| Power Rating |
125W |
| Dimensions |
110 mm (L) x 63 mm (W) |
| Wattage Tolerance | +5% / -10% (Per industrial standards) |
| Sheath Material |
Stainless Steel (Folded edge construction) |
| Internal Insulation | High-temperature Mica board |
| Heating Core | NiCr alloy resistance ribbon |
| Terminal Type |
Threaded studs with ceramic insulating caps |
| Mounting Interface |
Two pre-drilled through-holes for flush clamping |
| Max Operating Temp | Up to 350°C (Surface rating) |
| Dielectric Withstand | 1500V AC / 1 sec (Cold state) |
| Cold Insulation Resistance | ≥100MΩ at 500V DC |
Application & Engineering Notes
- Packaging & Sealing Machinery: Engineered to provide rapid, uniform heat distribution to heat-seal bars, cutting knives, and blister packaging jaws.
- Molding & Press Equipment: Suitable for flat-bed presses, thermoforming platens, and extrusion dies where low-profile conductive heat sources are required.
Installation & Operational Constraints
- Flush Clamping Requirement: The flat face of the heater must be clamped securely and evenly against a smooth, clean metal mating surface. Any air gaps, uneven surfaces, or trapped debris will cause localized thermal pockets, leading to premature insulation breakdown and element failure.
- Thermal Expansion Retightening: Use a heavy backing plate (typically 3mm to 6mm thick) to clamp the heater. After the initial heat-up cycle brings the equipment to operating temperature, disconnect power and re-tighten the mounting bolts to account for metal thermal expansion.
- Environmental Limitations: Mica insulation is susceptible to moisture ingress and fluid contamination. This heater is strictly designed for dry-environment industrial applications. Keep the terminal connections and element seams clear of oil, water, molten plastics, and corrosive gases.
- Electrical Connections: Ensure power leads are equipped with high-temperature ring terminals and securely fastened beneath the ceramic terminal caps to prevent electrical arcing. Use high-temperature fiberglass or mica-insulated lead wires.
