Ceramic Band Heater is designed and manufactured out of 40 years of experience, for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high efficiency & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500°C along with Energy Saving.

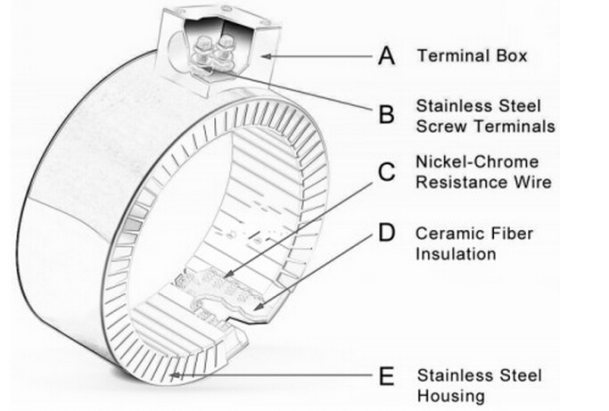

Structure of Ceramic Band Heater:
Industrial Heater | Ceramic Band Heater |
Resistance Wire | Ni-Cr 80/20 |
Sheath | 304 stainless steel |
Insulation | Ceramic |
Terminal | Ceramic terminal/flange/lead/terminal box and customized |
Heater Voltage | 120V 220V 230V 240V 480V standard |
Wavelength range | 2-10 microns |
Operating Temperature | 300°C to 700°C (572°F - 1292°F) |
Operating Life-Up | 20,000 hrs |
Radiation distance | 100 mm to 250 mm |
Features:
1. Energy efficient
2. Energy saver
3. Highly flexible
4. Durable
5. Maintains heat
6. Provide uniform heat distribution
7. CSA, CE and UL certified
Application:
1. Injection molding
2. Blow-molding
3. Plastic extrusion
4. Container, pipe, or tank heating
5. Process applications
With 20 years experience, Hongtai Alloy is your trusted source for quality barrel ceramic band heater manufacturer for extruder as one of the leading suppliers of various heaters in China. Providing you with the most competitive price, we welcome you to buy the heater from our factory.
